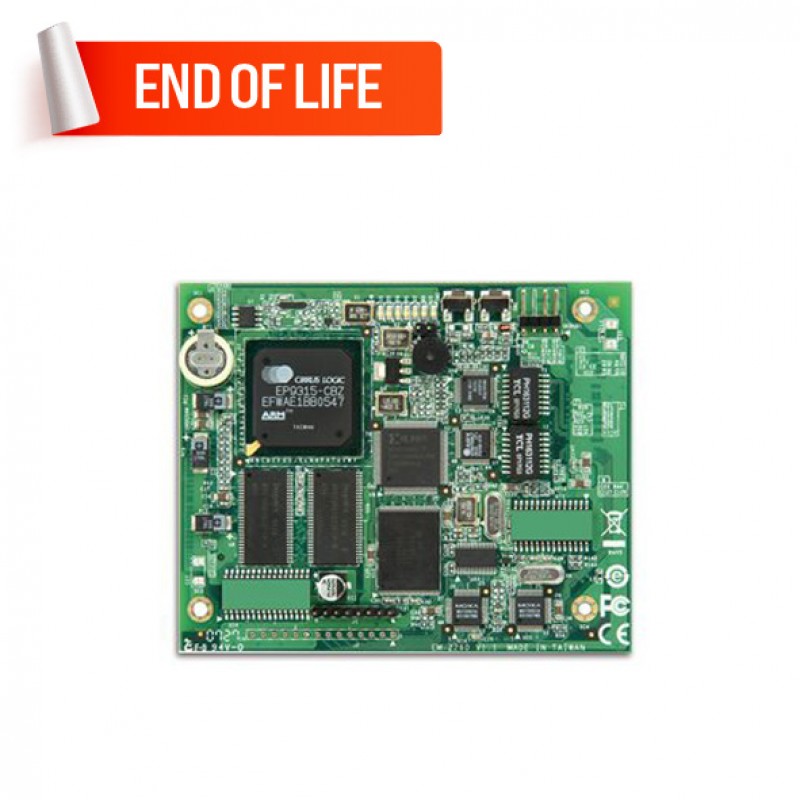

MOXA EM-2260-LX Arm-based Industrial Computer-On-Module
- CPU Cirrus EP9315 Arm9, 200 MHz
- Ready-to-run μCLinux platform
- Onboard 128 MB SDRAM and 32 MB NOR Flash
- 2 x 10/100 Mbps Ethernet ports
- 4 x RS-232/422/485 Serial ports
- 8 x Digital inputs and 8 x Digital outputs
- 12 VDC input power range
- -10 to 60°C operating temperature range
Description
The EM-2260 embedded module features 4 RS-232/422/485 serial
ports, dual Ethernet ports, and an Enhanced Integrated Drive Electronics (EIDE)
interface for designing an external storage connection, such as a CompactFlash
socket or USB port signals. The module has a compact design that is easily
integrated with a variety of industrial applications, including gas stations,
vending machines, and ticketing machines and offers a powerful serial
communication capability for better system integration. Programmers will find
the preinstalled, ready-to-run Windows CE 6.0 platform and full-function
development kit a great benefit when developing software and building reliable
communication bases for industrial automation applications.
The EM-2260 embedded module uses the Cirrus Logic EP9315
Arm9, 32-bit, 200 MHz RISC CPU. This powerful computing engine supports several
useful communication functions, but will not generate a lot of heat. The
built-in 32 MB NOR Flash ROM and 128 MB SDRAM give you enough memory to run your
application software directly on the EM-2260. With its built-in VGA output
interface, the EM-2260 is suitable for use with SCADA systems in industrial
applications, such as manufacturing automation, production line process
monitoring, and mining automation, that require VGA and HMI features.
The EM-2260 Development Kit provides users with a handy tool for first-time evaluation to test the functionality of the embedded core module. It has several peripherals built-in, including RS-232/422/485 ports and digital input and output, making it suitable for developing a variety of industrial applications.
End of Life Product - No Replacement
Please note that the EM-2260 Series has been phased out. You can explore the UC-2100 Series, UC-3100 Series, and UC-5100 Series in the RISC Computers.
Inquire about the MOXA EM-2260-LX Arm-based Industrial Computer-On-Module, designed
for industrial automation solutions. Feel free to get in touch with our sales team to give you
the best solutions at the best global price in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ports | 2 x Auto-sensing 10/100 Mbps Ethernet ports , 4 x RS-232/422/485 Serial ports, 8 x Digital inputs and 8 x Digital outputs (3.3 V, CMOS level), 1 x 4-pin header to DB9 console port |
| Connector | RJ45, DB9 |
| Typical Distance | - |
| POWER REQUIREMENTS | |
| Power Information | Input Voltage: 12 VDC; Input Current: 480 mA @ 12 VAC; Power Consumption: 5.8 W |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 106 x 87 mm (4.17 x 3.43 in) |
| Weight | 70 g (0.16 lb) |
| Operating Temperature | -10 to 60°C (14 to 140°F) |
| Storage Temperature | -20 to 80°C (-4 to 176°F) |
| Ambient Relative Humidity | - |
| Standards and Certifications | EMC: EN 55032/24, EN 61000-3-2 Class A, EN 61000-3-3, CISPR 32, FCC Part 15B Class A; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard |
| MTBF | 131,832 hrs |
