Description

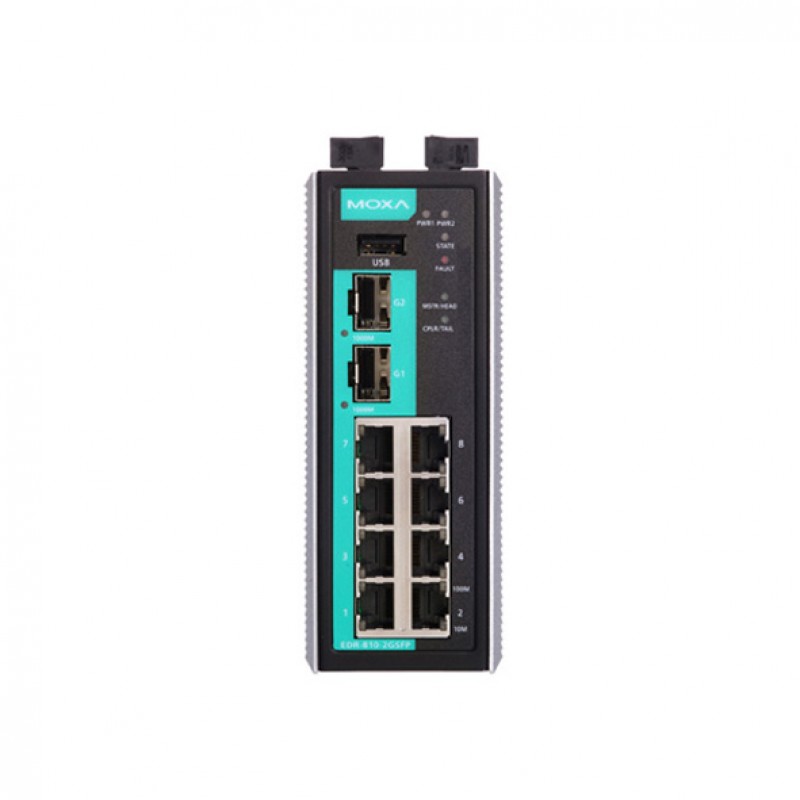

The EDR-810 is a highly integrated industrial multiport
secure router with firewall/NAT/VPN and managed Layer 2 switch functions. It is
designed for Ethernet-based security applications on critical remote control or
monitoring networks, and it provides an electronic security perimeter for the
protection of critical cyber assets including pump-and-treat systems in water
stations, DCS systems in oil and gas applications, and PLC/SCADA systems in
factory automation. The EDR-810 Series includes the following cybersecurity
features:
- Firewall/NAT: Firewall policies control network traffic between different trust zones, and Network Address Translation (NAT) shields the internal LAN from unauthorized activity by outside hosts.
- VPN: Virtual Private Networking (VPN) is designed to provide users with secure communication tunnels when accessing a private network from the public Internet. VPNs use IPsec (IP Security) server or client mode to encrypt and authenticate all IP packets at the network layer to ensure confidentiality and sender authentication.
The EDR-810’s “WAN Routing Quick Setting” provides an easy way for users to set up WAN and LAN ports to create a routing function in four steps. In addition, the EDR-810’s “Quick Automation Profile” gives engineers a simple way to configure the firewall filtering function with general automation protocols, including EtherNet/IP, Modbus TCP, EtherCAT, FOUNDATION Fieldbus, and PROFINET. Users can easily create a secure Ethernet network from a user-friendly web UI with a single click, and the EDR-810 can perform deep Modbus TCP packet inspection. Wide-temperature range models that operate reliably in hazardous, -40 to 75°C environments are also available.
You can also find the EDR-810-VPN-2GSFP, EDR-810-2GSFP, and EDR-810-VPN-2GSFP-T models in the Industrial Secure Routers.
Easy World Automation offers the easiest way to buy the MOXA EDR-810-2GSFP-T Multiport Industrial Secure Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| INTERFACE | |
|---|---|
| Ethernet Ports | 8 x 10/100BaseT(X) Ports (RJ45 connector) , 2 x 100/1000BaseSFP Slots |
| Serial Ports | 1 x Console Port: RS-232 (TxD, RxD, GND), 3-pin (115200, n, 8, 1) |
| Input/Output Channels | 1 x Digital Input Channels (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA) |
| Alarm Contact Channels | Resistive load: 1 A @ 24 VDC |
| SOFTWARE SPECIFICATIONS | |
| Management | Back Pressure Flow Control, DDNS, DHCP Server/Client, Web Console (HTTP/HTTPS), LLDP, QoS/CoS/ToS, SNMPv1/v2c/v3, Telnet, TFTP |
| Routing Redundancy | VRRP |
| Security | HTTPS/SSL, SSH, L2TP (server), RADIUS |
| Time Management | NTP Server/Client, SNTP |
| Encryption | |
| Authentication | |
| LED INTERFACE | |
| LED Indicators | STATE, PWR1, PWR2, FAULT, 10/100/1000M |
| GENERAL | |
| Supported Protocols | Redundancy: RSTP, STP, Turbo Ring v2 |
| MTBF | 981,954 hrs |
| POWER REQUIREMENTS | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 0.706 A @ 12 VDC, 0.353 A @ 24 VDC, 0.187 A @ 48 VDC |
| Operating Voltage | - |
| Overload Current Protection | - |
| Reverse Polarity Protection | Supported |
| Power Connector | Removable terminal block |
| PHYSICAL CHARACTERISTICS | |
| Housing | Metal |
| Dimensions | 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in) |
| Weight | 830 g (2.10 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: UL 508; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Maritime: DNV; Traffic Control: NEMA TS2; Railway: EN 50121-4; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Industrial Cybersecurity: IEC 61162-460; Telcordia (Bellcore), GB |
