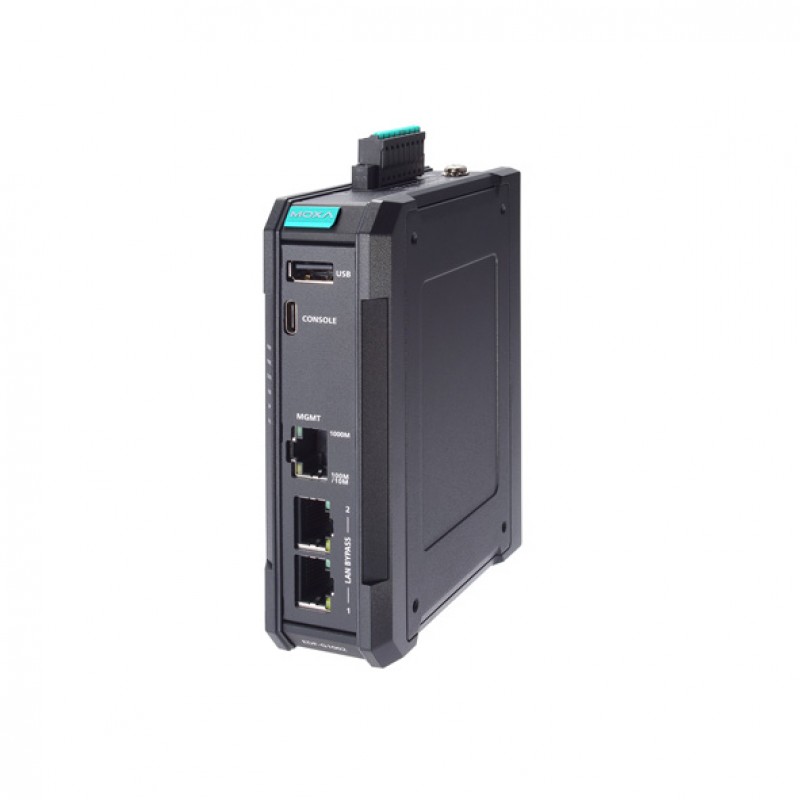

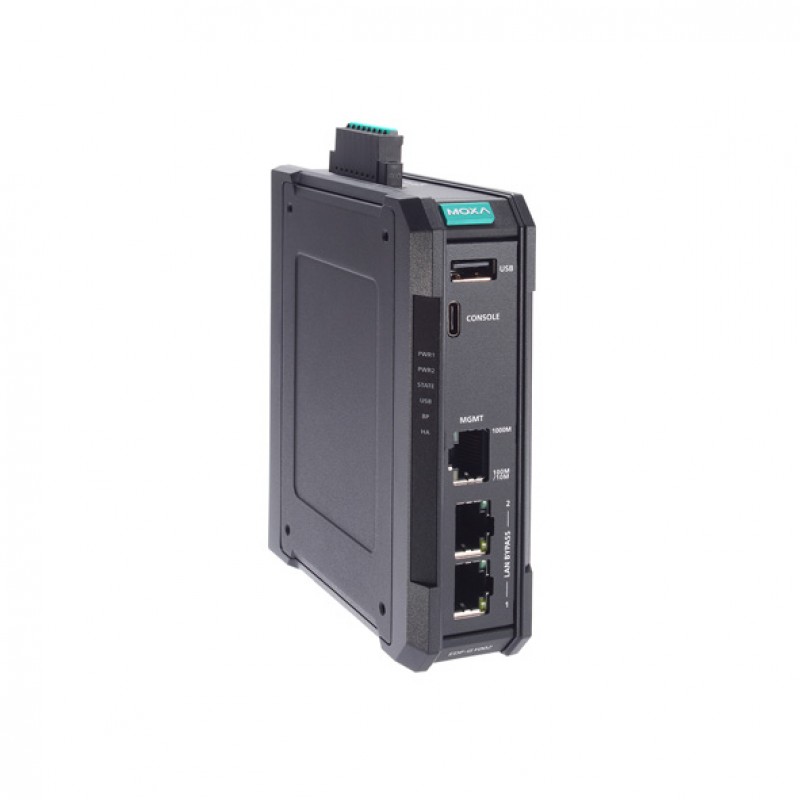

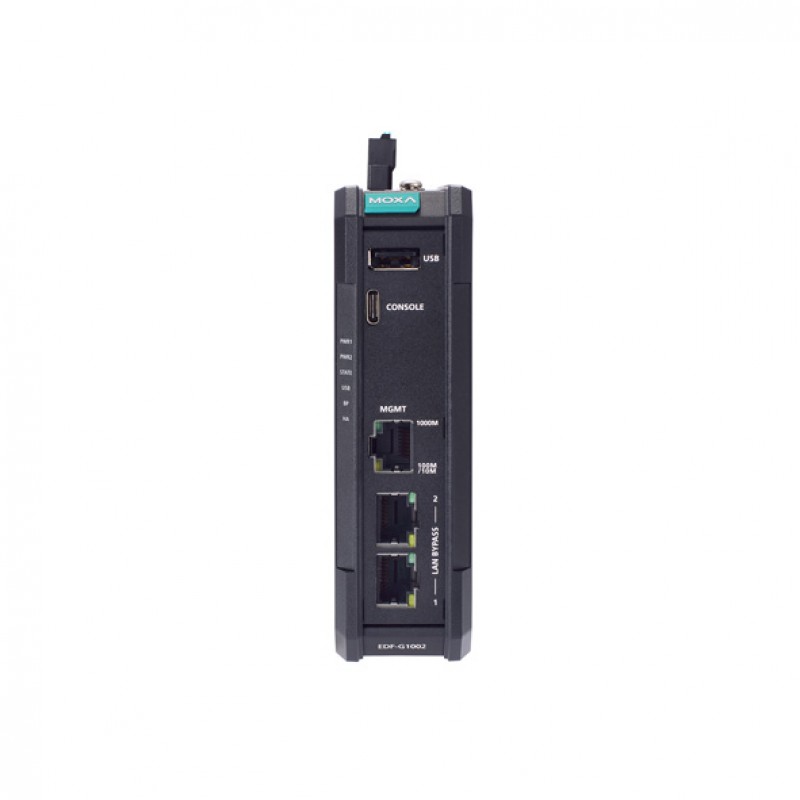

MOXA EDF-G1002-BP-T Industrial LAN Firewall
- 2 x 10/100/1000BaseT(X) Ports (RJ45 Connector)
- 1 x 10/100/1000BaseT(X) MGMT Port (RJ45 Connector)
- 12/24/48 VDC Redundant dual power inputs
- Metal body design
- Supports MXsecurity and MXstudio for easy network management
- DIN-rail and Wall mounting installation
- -40 to 75°C operating temperature
Description
The EDF-G1002-BP Series is an industrial-grade LAN firewall
with IPS and DPI functionality to protect mission-critical assets and network
zones. These industrial firewalls support software-configurable Gen3 LAN bypass
to achieve bump-in-the-wire installation and minimize the installation impact
for industrial applications such as ITS, pump-and-treat systems in water
stations, distributed control systems in oil and gas, and PLC/SCADA systems in
factory automation.
Dynamically Prevent Malicious Cyber Threat Activity With
IPS/IDS
The EDF-G1002-BP Series is designed to protect
mission-critical assets at the OT network edge with advanced intrusion
prevention and detection systems (IPS/IDS). It analyzes network traffic in the
background and enables behavior monitoring and awareness of cyber activities.
These firewall devices support both a “Monitor” and “Protect” mode to
facilitate different OT scenarios. “Monitor” mode gives administrators full
visibility of cyber threat activities on the network. If a threat is detected,
administrators can easily switch to “Protect” mode to block and contain any
malicious operations.
Industrial Deep Packet Inspection for Mission-critical
Assets
The EDF-G1002-BP Series supports advanced Deep Packet
Inspection (DPI) technology, providing awareness of industrial protocol data
and allowing for granular command of control system traffic to critical
controllers.
You can also find the EDF-G1002-BP, EDF-G1002-BP-CT, and EDF-G1002-BP-CT-T models in the Network Security Appliance.
Enjoy the ease of online inquiries for the MOXA EDF-G1002-BP-T Industrial LAN Firewall. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ethernet | 2 x 10/100/1000BaseT(X) Ports (RJ45 Connector), 1 x 10/100/1000BaseT(X) MGMT Port (RJ45 Connector) |
| Serial | 1 x RS-232 Console Port (USB Type-C connector) |
| Buttons | Reset button |
| Digital Input Channels | +13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA |
| LED Indicators | PWR1, PWR2, STATE, BYPASS, USB |
| Alarm Contact Channels | Resistive load: 1 A @ 24 VDC |
| DOS AND DDOS PROTECTION | |
| Technology | ARP-Flood, FIN Scan, ICMP Flood, TCP Sessions Without SYN, NMAP-ID Scan, NMAP-Xmas Scan, Null Scan, SYN/FIN Scan, SYN/RST Scan, SYN-Flood, Xmas Scan |
| SOFTWARE FEATURES | |
| Supported Interfaces | - |
| Management | - |
| Authentication | - |
| FIREWALL | |
| Throughput | Max. 45K packets per second/500 Mbps (based on RFC 2544) |
| Filter | DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports |
| IPS Throughput | - |
| Intrusion Prevention System | Enabled by default. IPS pattern update functionality requires an additional license |
| Latency | - |
| Deep Packet Inspection | Modbus TCP, Modbus UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, Omron FINS, Siemens S7 Comm., Additional protocols will be supported through future firmware updates. |
| Policy Enforcement Rules | - |
| ICS Protocol Filter Profiles | - |
| REAL-TIME FIREWALL / VPN EVENT LOG | |
| Event Type | Firewall events, Protocol DPI, and IDS/IPS events |
| Media | Syslog server, Local storage, SNMP Trap |
| POWER PARAMETERS | |
| Connection | Removable terminal block |
| Input Voltage | 12/24/48 VDC (Redundant dual inputs) |
| Input Current | 0.69 A (max) |
| Reverse Polarity Protection | Supported |
| PHYSICAL CHARACTERISTICS | |
| Housing | Metal |
| Dimensions | 35 x 125 x 100 mm (1,38 x 4.92 x 3.94 in) |
| Weight | 385 g (0.85 lb) |
| Installation | DIN-rail mounting, Wall mounting |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: IEC 62368-1, UL 62368-1; EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4; Traffic Control: NEMA TS2; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Vibration: IEC 60068-2-6; Telcordia (Bellcore), GB |
| MTBF | 2,929,641 hrs |
