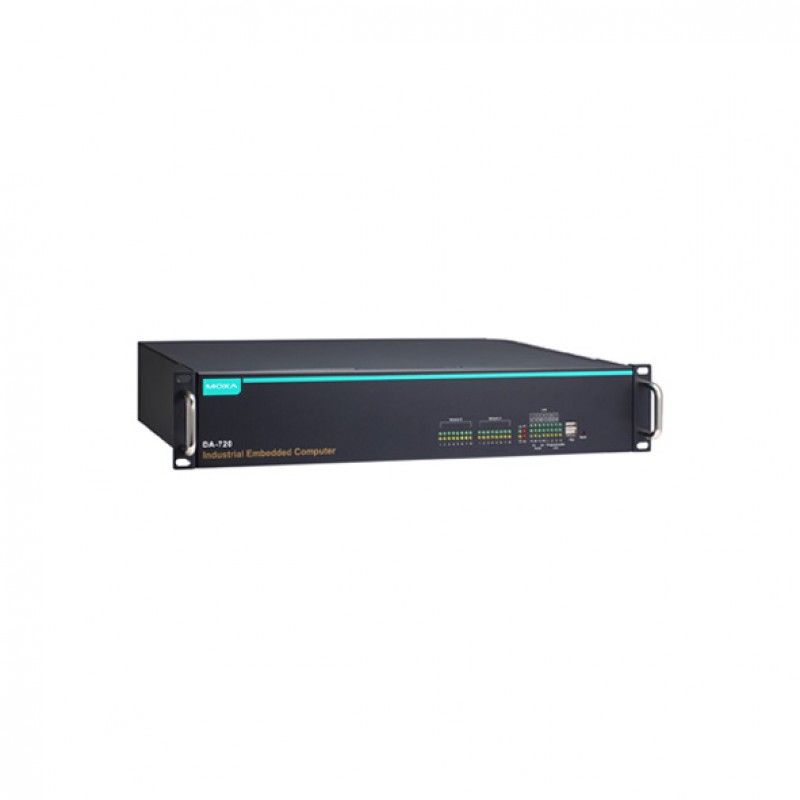

MOXA DA-720-C5-DPP Rackmount Industrial Computer
- CPU: Intel® Core™ i5-6300U Processor
- 14 x 10/100/1000 Mbps Ethernet ports
- 2 x RS-232/422/485 Isolated serial ports
- Metal body design
- 100 to 240 VAC/VDC dual power inputs
- Rackmount installation design
- -25 to 55°C operating temperature range
Description
The DA-720 Series computers are x86 platforms with 14
Gigabit Ethernet ports, 2 isolated RS-232/422/485 serial ports, USB, VGA, and 3
PCIe ports for expansion modules. The DA-720 comes in a standard 19-inch 2U
rack-mountable case with a robust design ideal for specialized industrial
automation applications, including power substations, transportation and
shipping, and oil and gas production and supply.
With IEC-61850-3 and IEEE 1613 compliance, the DA-720 will deliver stable and reliable system operation for power applications.
The DA-720 also complies with the IEC 60255 standards, which cover the
protection of electrical relays in a smart substation. IEC 60255 is one of the
most widely used standards for testing relays and protection equipment, and
compliance with the standard ensures that the DA-720 will work reliably and
seamlessly with IEDs as part of a robust substation automation system. EN
50121-4 compliance confirms that the DA-720 can deliver stable and reliable
system operations in rail wayside applications, such as station SCADA systems,
wayside disaster prevention, traction power, and signaling and safety systems
to provide an integrated view of your smart rail setup.
The DA-720 comes with two different CPU options and basic
models that allow system designers to install the mSATA and RAM and operate the system according to their specific requirements. Such a wide choice of options is particularly welcome when designing customized industrial
solutions.
The DA-720 comes with 3 PCIe ports for expansion modules,
including an 8-port RS-232/422/485 module, 4-port, and 8-port 10/100/1000 Mbps
LAN modules, a 2-port 100/1000 Mbps PCIe PRP/HSR LAN module, a dual 2.5” SATA
III SSD/HDD socket module, and a 2-port IRIG-B time synchronization module with
a 4 DI/DO module.
The DA-720 computers can support up to 22 Gigabit LAN ports plus 16 serial ports, or 14 Gigabit LAN ports and 24 serial ports, making the DA-720 an ideal solution for a wide range of industrial automation applications. The PRP-HSR expansion module is compliant with IEC 62439-3 Clause 4 (PRP) and IEC 62439-3 Clause 5 (HSR) to ensure the highest system availability and data integrity for mission-critical applications that require redundancy and zero-time recovery. With a dual Gigabit Ethernet port design, the DE-PRP-HSR-EF provides high performance for redundant network systems. Moxa’s DA-720 Series industrial computer with the DEPRP-HSR-EF is the ideal solution for power substation automation and process automation systems.
You can also find DA-720-C7-DPP-LX and DA-720-C7-DPP models in the Wide Temperature Computers.
Discover industrial automation
solutions appropriate to your needs, and easily inquire about the MOXA DA-720-C5-DPP Rackmount Industrial Computer through
our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh) and Oman).
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz) |
| Supported OS | Linux Debian 8 (Linux kernel v4.1), Windows 10 Embedded IoT Ent 2016 LTSB High End EPKEA, Windows 10 Embedded IoT Ent 2016 LTSB Value EPKEA (W10 available by CTOS) |
| OS (pre-installed) | - |
| System Memory | - |
| Graphics Controller | Intel® HD Graphics 520 |
| Storage Slot | 2.5-inch HDD/SSD slots x 1, mSATA slots x 1, internal mini-PCIe socket |
| Interface | |
| LAN | 14 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | |
| Digital Input/Output Channels | |
| Serial Ports | 2 x RS-232/422/485 ports, software-selectable (terminal block) |
| USB | 2 x USB 2.0 hosts, type-A connectors (front), 2 x USB 3.0 hosts, type-A connectors (rear) |
| Expansion Slot | Proprietary PCIe slot x 3 |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbps |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | - |
| Serial Signals | |
| RS-232 | TxD, RxD, RTS, CTS, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Power x 1, Storage x 1, Programmable x 4 |
| LAN | 1 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | - |
| Input Current | (Dual power inputs) 100 to 240 VAC, 50 to 60 Hz, 0.82 A (max), 100 to 240 VDC, 0.84 A (max) |
| Power Consumption | - |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 138,319 hrs |
| Physical Characteristics | |
| Dimensions | 440 x 301 x 90 mm (17.32 x 12.20 x 3.54 in) |
| Housing | Metal |
| Operating temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8: 20 A/m, IEC 61000-4-11; Power Substation: IEC 61850-3, IEEE 1613; Protection Relay: IEC 60255; Railway: EN 50121-4; Safety: EN 62368-1, IEC 60950-1, UL 60950-1; Shock: IEC 60870-2-2, IEC 61850-3 Edition 1.0; Vibration: IEC 61850-3, IEC 60870-2-2; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 6,500 g (14.33 lb) |
| Mounting | 19-inch rack mounting |
