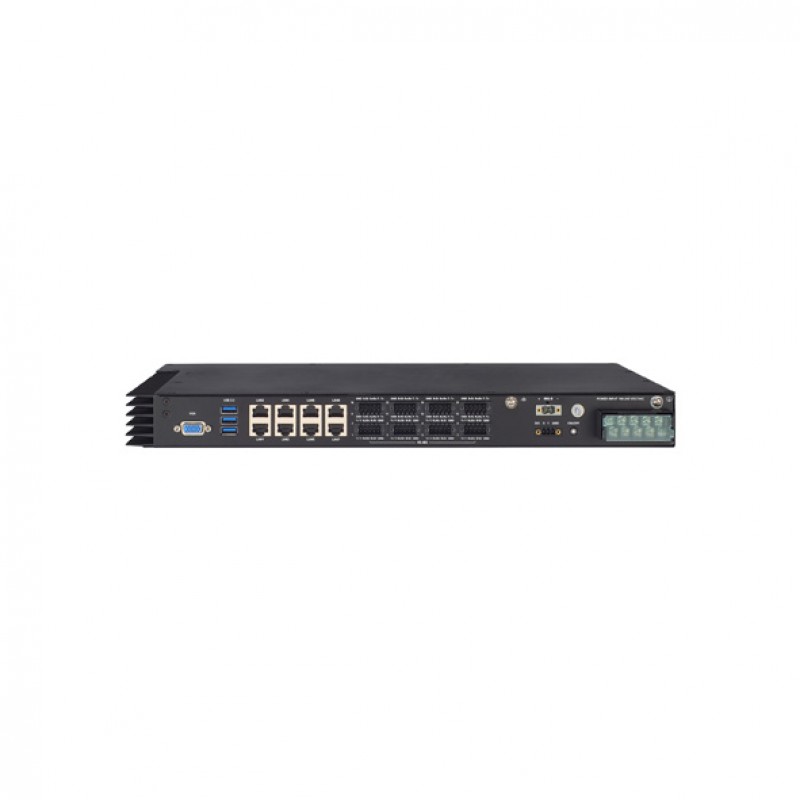

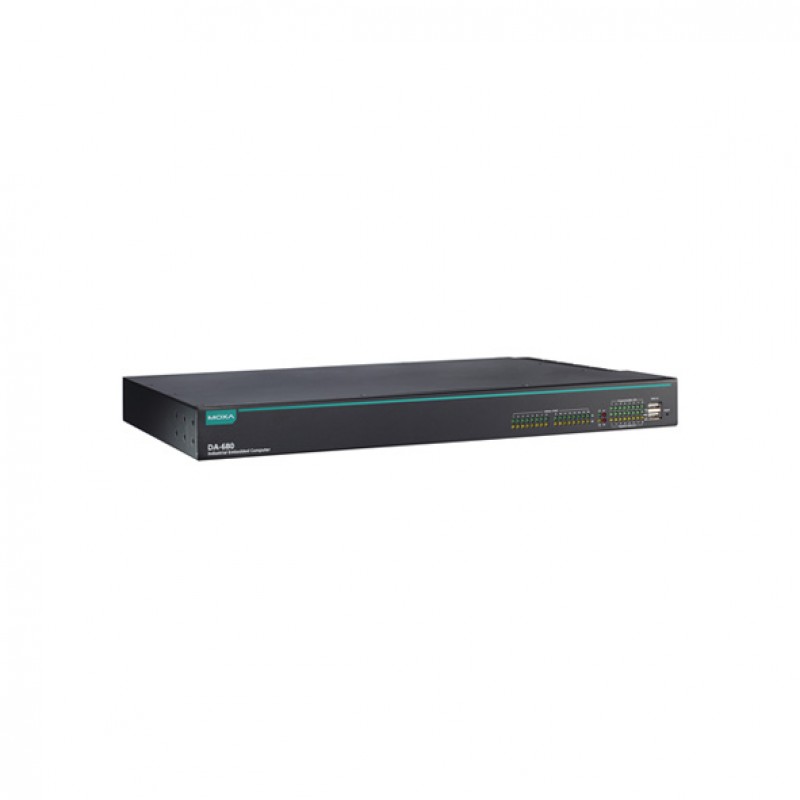

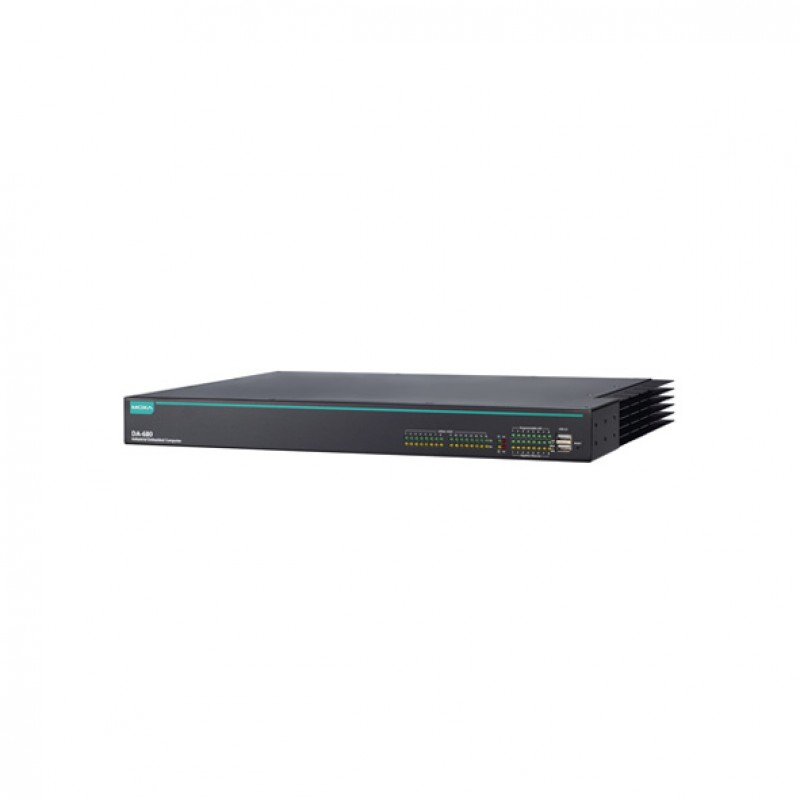

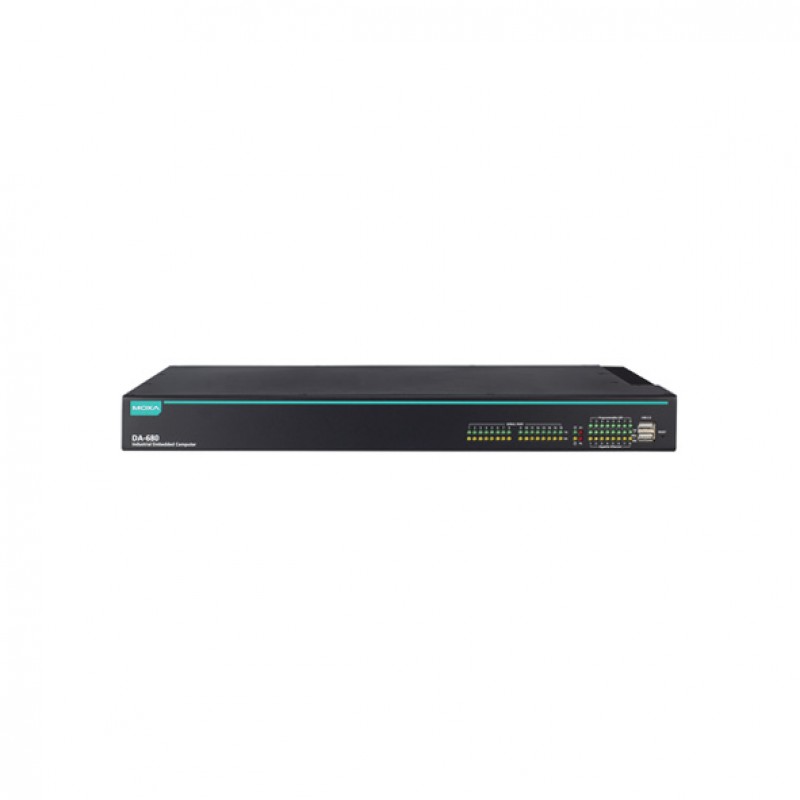

MOXA DA-680-I-16-WL3-HH Rackmount Industrial Computer
- CPU: Intel® Core™ i3-8145UE Whiskey Lake
- 8 x 10/100/1000 Mbps Ethernet ports
- 16 x RS-485 2-wire / 4-wire Serial ports
- 100 to 240 VAC/VDC dual power inputs
- Rackmount installation design
- Metal body design
- -20 to 55°C operating temperature range
Description
The DA-680 computer is built around an Intel® Core™ i3
processor and comes with 8 Gigabit Ethernet ports, 1 VGA port, 8/16 isolated
RS-485 serial ports, and 5 USB ports. Additionally, one 2.5” HDD/SSD slot and
one mSATA slot are included to enable storage expansion for industrial
applications that require large storage space for edge data acquisition. With
IEC 61850-3, IEEE 1613, and IEC 60255 compliance, the DA-680 is sure to deliver
stable and reliable system operation for power applications.
You can also find the DA-680-I-16-WL3-H, DA-680-I-8-WL3-H, and DA-680-I-8-WL3-HH models in the Wide Temperature Computers.
Enjoy the ease of online inquiries for the MOXA DA-680-I-16-WL3-HH Rackmount Industrial Computer. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Computer | |
|---|---|
| CPU | Intel® Core™ i3-8145UE Whiskey Lake processor |
| Supported OS | Windows 10 IoT Ent 2021 LTSC, version 21H2, Linux Debian 11, Ubuntu 20.04, CentOS 7.9 |
| OS (pre-installed) | - |
| System Memory | 16 GB max |
| Graphics Controller | Intel® UHD Graphics 620 |
| Storage Slot | 2.5-inch HDD/SSD slots x 1, mSATA slots x 1 |
| Interface | |
| LAN | 8 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) |
| Magnetic Isolation Protection | - |
| Digital Input/Output Channels | 2 x Digital outputs (Screw-fastened Euroblock terminal connector) |
| Serial Ports | 16 x 2-wire RS-485/4-wire RS-485 (terminal block) |
| USB | 2 x USB 2.0 hosts, type-A connectors (2 ports on the front panel, 1 port inside the computer), 3 x USB 3.0 hosts, type-A connectors (3 ports on the rear panel) |
| Expansion Slot | - |
| Serial Communication Parameters | |
| Baudrate | 50 bps to 115.2 kbp |
| Data Bits | - |
| Stop Bits | - |
| Parity | - |
| Flow Control | - |
| Serial Signals | |
| RS-232 | - |
| RS-422 | - |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| LED Indicators | |
| System | Programmable x 6, Storage x 1, Power x 1, Power Fail x 2, (Power Fail 1/2) |
| LAN | 2 per port (10/100/1000 Mbps) |
| Serial | 2 per port (Tx, Rx) |
| Power Requirements | |
| Input Voltage | - |
| Input Current | 100 to 240 VAC, 50/60 Hz, 1.05 A (max), 100 to 240 VDC, 0.7 A (max) |
| Power Consumption | - |
| General | |
| Alert Tools | - |
| Automatic Reboot Trigger | - |
| MTBF | 238,154 hrs |
| Physical Characteristics | |
| Dimensions | 440 x 335.5 x 44 mm (17.32 x 13.21 x 1.73 in) |
| Housing | Metal |
| Operating temperature | -25 to 55°C (-13 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Relative humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF: 100 A/m at 50 Hz, IEC 61000-4-11; Power Substation: IEC 61850-3, IEEE 1613; Protection Relay: IEC 60255; Shock: IEC 61850-3 Edition 2.0, IEC 60068-2-27, IEC 60255-21-2; Safety: UL 62368-1, IEC 62368-1; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Weight | 4659.5 g (10.27 lb) |
| Mounting | 19-inch rack mounting |
