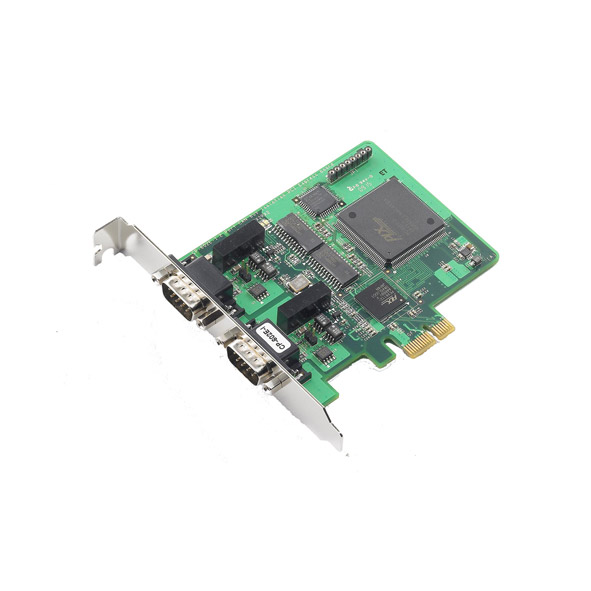

MOXA CP-602E-I-T w/o Cable CANBUS PCI Express Board
- Supports CAN 2.0A and CAN 2.0B
- Two independent CAN communication ports
- CAN transfer rate up to 1 Mbps
- 2 kV electrical isolation
- LED for transmit/receive status on each port
- Optional 120-ohm terminal resistor for CAN bus network
- DLL library and examples included
- Windows driver provided
Description
Moxa’s CP-602E-I CAN (Controller Area Network) interface board supports the PCI Express interface. As a standalone CAN controller, the CP-602EI is a cost-effective solution that provides two active CAN controllers with a DB9 connector on the same board. The CP-602E-I CAN interface board uses the NXP SJA1000 and transceiver PCA82C251, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CP-602E-I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
You can also find the CP-602E-I w/o Cable model in the Protocol Converters.
Enjoy the
ease of online inquiries for the MOXA CP-602E-I-T w/o Cable CANBUS PCI Express Board. You can submit your inquiry on our
website and get the most friendly communication with our experts to choose
high-quality industrial automation products at a reasonable price from our
Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| SERIAL INTERFACE | |
|---|---|
| Nomber of Ports | 2 |
| Serial Standards | - |
| Connector | - |
| Serial Isolation Protection | 2 kV electrical isolation |
| CAN INTERFACE | |
| Connector | DB9 male |
| Nomber of Ports | 2 |
| Baudrate | 10/20/50/125/250/500/800/1000 kbps, user-defined |
| GENERAL | |
| Standards and Certifications | EMC, EMI, EMS |
| MTBF | 4,645,502 hrs |
| PHYSICAL CHARACTERISTICS | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Dimensions | 120.5 x 100 x 85 x 59.05 mm |
