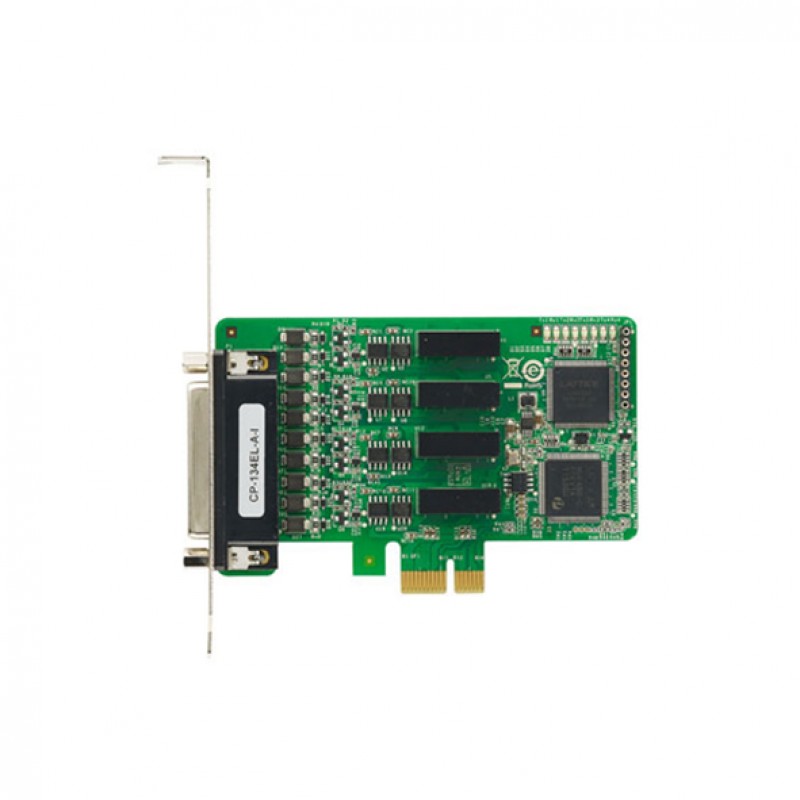

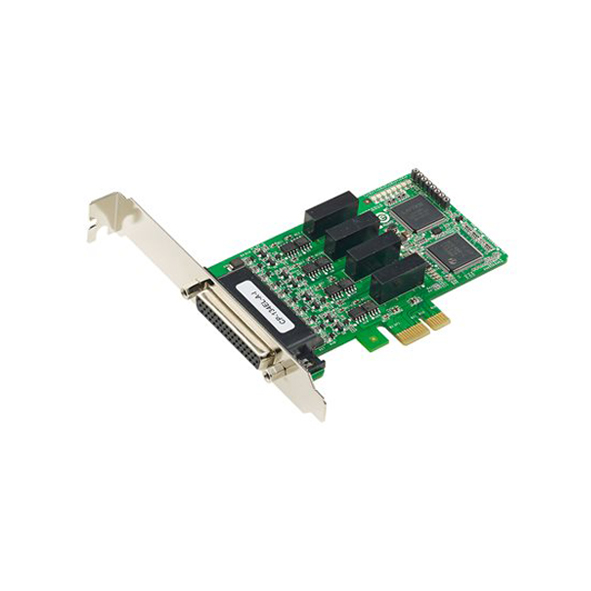

MOXA CP-134EL-A-I w/o Cable PCI Express Serial Board
- 4 x RS-422/485 Serial Ports
- PCI Express 1.0 compliant
- 921.6 kbps maximum baudrate for fast data transmission
- 128-byte FIFO and on-chip S/W flow control
- Variety of connection cables and boxes available for RS-232/422/485
- Drivers provided for a broad selection of operating systems, including Windows, Linux, and UNIX
- Easy maintenance with built-in LEDs and management software
- 4 kV surge Protection
- 2 kV electrical isolation
- Brand: MOXA
- Product Code: CP-134EL-A-I w/o Cable
Description
The CP-134EL-A-I is a smart PCI Express multiport serial
board designed for POS and ATM applications and for use by industrial
automation system manufacturers and system integrators. The CP-134EL-A-I is
compatible with all popular operating systems, and each of its eight serial
ports supports data rates of up to 921.6 kbps and provides full modem control
signals, ensuring compatibility with a wide range of serial peripherals. In
addition, the CP-134EL-A-I works with PCI Express x1, allowing the board to be
installed in any PCI Express slot.
Setting up an RS-485 network is relatively straightforward. The challenge comes when the power is turned on and the devices connected to the network start transmitting and receiving data. In most cases, engineers will need to further tune the system by configuring pull high/low resistors and terminators at strategic points along with the network. Moxa’s new Intelligent RS-485 technology supports two essential features to make it easy: (1) One-Click Installation automatically analyzes the network topology and then adjusts terminators and pulls high/low resistors. (2) One-click troubleshooting tells you what to change to make a deficient network viable.
Inquire about the MOXA CP-134EL-A-I w/o Cable PCI Express Serial Board and all MOXA Multiport Serial Cards, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C compatible |
| Number of Ports | 4 |
| Bus interface | PCI Express 1.0 |
| Serial Standards | RS-422, RS-485 |
| Connector | DB44 female |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Stop Bits | 1, 1.5, 2 |
| Parity | |
| Flow Control | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| POWER REQUIREMENTS | |
| Power requirement | 3,414 mA @ 3.3 VDC |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x |
| UNIX Drivers | Solaris 10, UnixWare 7, SCO OpenServer 5, SCO OpenServer 6 |
| GENERAL | |
| MTBF | 433,077 hrs |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 67.21 x 103 mm (2.65 x 4.06 in) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, RoHS, CRoHS, WEEE |
