Description

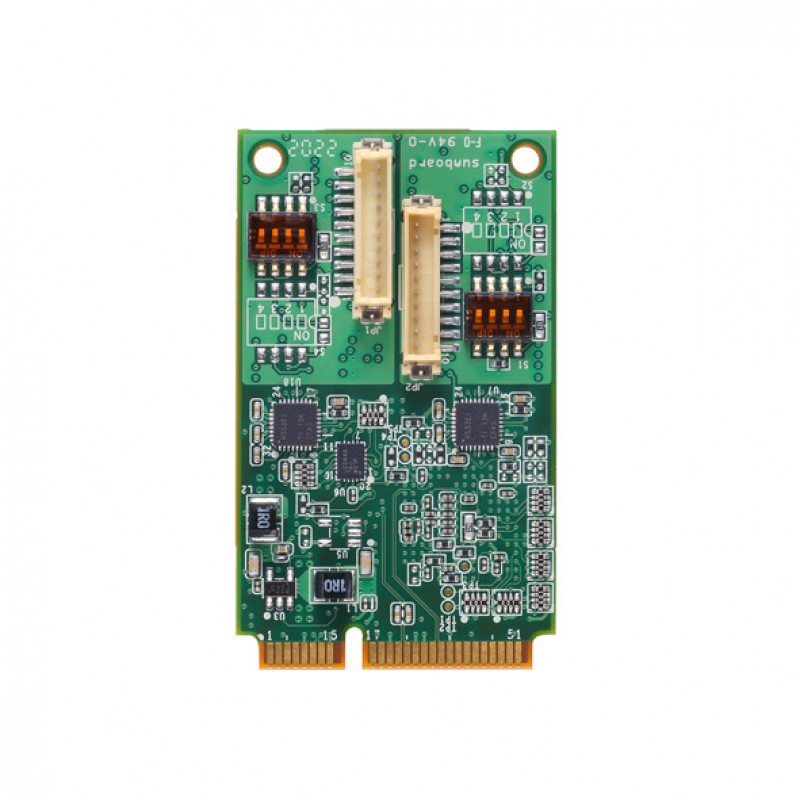

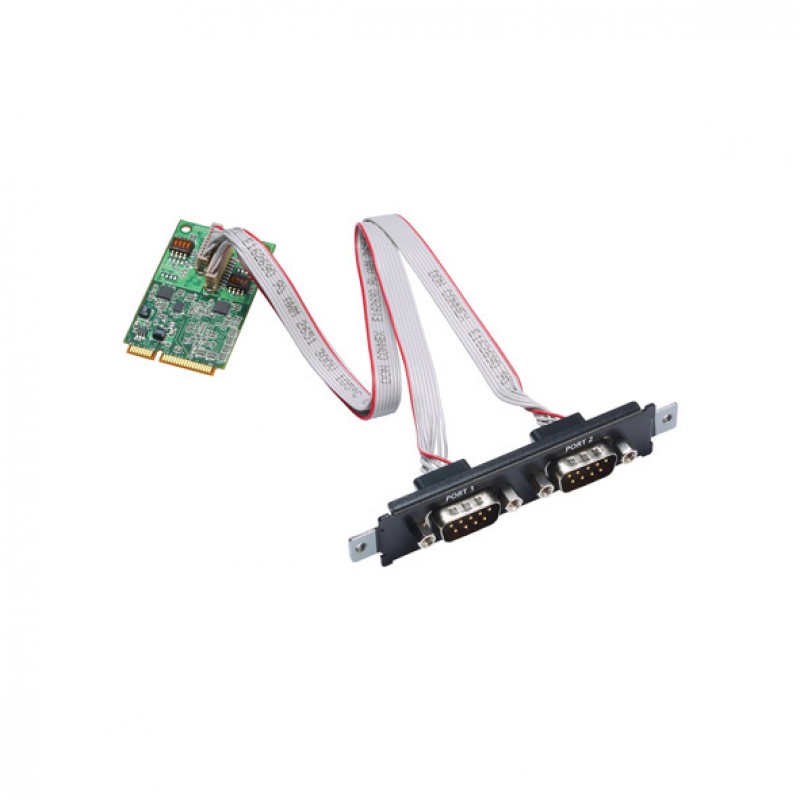

The CP-132N is a Mini PCI Express multiport serial board
designed for various applications and users such as system integrators industrial automation systems and industrial PC manufacturers.
The CP-132N is compatible with all popular operating systems and supports data rates up to 921.6 kbps. It also provides 1 kV line-to-line surge protection and 2.5 kV isolation (for the I model), ensuring compatibility with various industrial environments. Furthermore, the CP-132N is embedded with a DIP switch for easy adjusting of the terminal and pull-high/low resistors for various environments and applications.
RS-485 Multidrop for up to 31 Devices Within 1.2 km
The CP-132N Series boards have two RS-422/485 serial ports, each of which can achieve data rates up to 921.6 kbps. In RS-485 mode, the boards can connect up to 31 daisy-chained RS-485 devices within a range of 1.2 km. For long-distance RS-485 communication, choose the CP-132N-I-T model, which comes with 2.5 kV electrical isolation protection to prevent equipment damage.
You can also find the CP-132N-I-T model in the Multiport Serial Cards.
Explore our extensive range of industrial automation products such as MOXA CP-132N-T Mini PCI Express Serial Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | 16C550C compatible |
| Number of Ports | 2 Ports |
| Bus interface | Mini PCI Express |
| Serial Standards | RS-422, RS-485 |
| Connector | DB9 male |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Max. No. of Boards per PC | - |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| Isolation | |
| SERIAL SIGNALS | |
| RS-232 | - |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | Windows 7/8/8.1/10/11 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Server 2022 |
| Linux Drivers | Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | - |
| POWER REQUIREMENTS | |
| Input Current | 487 mA @ 3.3 VDC |
| Input Voltage | - |
| GENERAL | |
| MTBF | 4,128,967 hrs |
| LED Indicators | - |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 30 x 50.95 mm (1.18 x 2 in) |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -20 to 85°C (-4 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR |
