Description

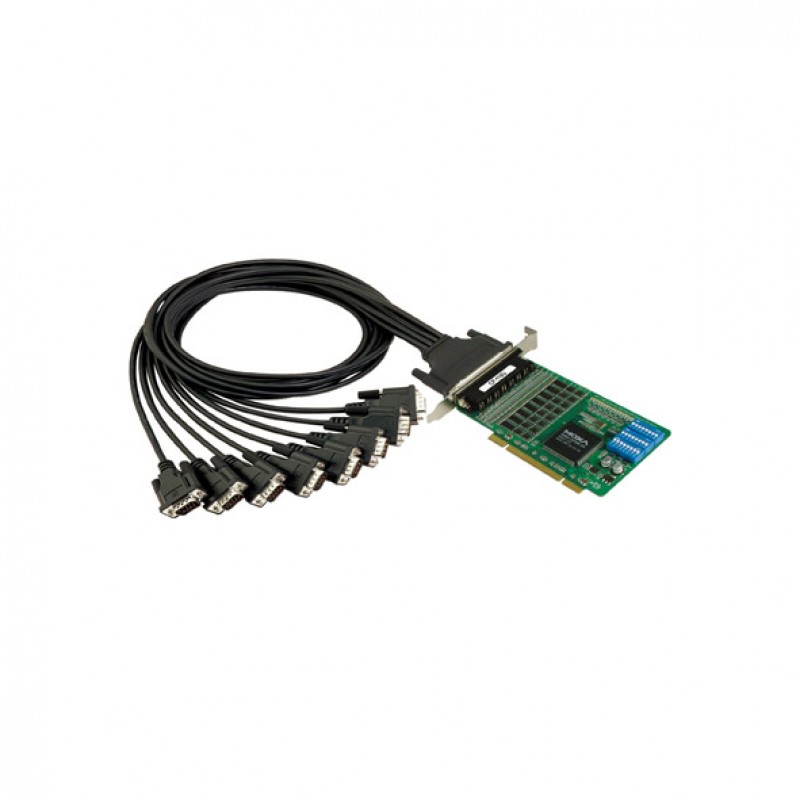

The CP-118U and CP-138U are smart, 8-port Universal PCI serial boards designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. Both boards are compatible with all major operating systems. In addition, CP-118U’s 8 RS-232/422/485 ports and the CP-138U’s 8 RS-422/485 ports support data rates up to 921.6 kbps and provide full modem control signals to ensure compatibility with a wide range of serial peripherals. The CP-118U and CP-138U support both 3.3V and 5V PCI buses, making them suitable for installation in most PC servers.
You can also find the CP-138U-T and CP-118U-T models in the Multiport Serial Cards.
Enjoy the
ease of online inquiries for the MOXA CP-118U UPCI Serial Board. You can submit your inquiry on our
website and get the most friendly communication with our experts to choose
high-quality industrial automation products at a reasonable price from our
Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| SERIAL INTERFACE | |
|---|---|
| Comm. Controller | MU860 (16C550C compatible) |
| Number of Ports | 8 Ports |
| Bus interface | 32-bit Universal PCI |
| Serial Standards | RS-232, RS-422, RS-485 |
| Connector | DB62 female |
| Baudrate | 50 bps to 921.6 kbps |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | RTS/CTS, XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 128 bytes |
| Isolation | |
| SERIAL SIGNALS | |
| RS-232 | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x |
| UNIX Drivers | QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| POWER REQUIREMENTS | |
| Input Current | 240 mA @ 5 VDC (RS-232); 300 mA @ 5 VDC (RS-422) |
| Input Voltage | - |
| GENERAL | |
| MTBF | 1,073,385 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 82 x 135 mm (3.22 x 5.31 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
