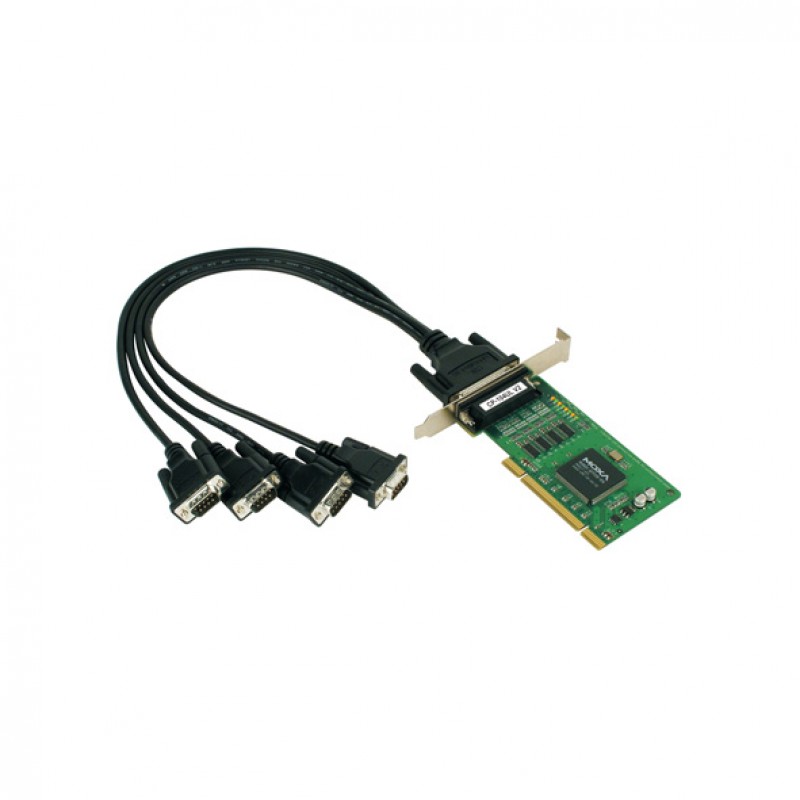

MOXA CP-104UL-T UPCI Serial Board

  • 4 x RS-232 Serial ports (DB44 female connector)
  • Supports maximum 921.6 kbps baud rate
  • 128-byte FIFO and on-chip H/W, S/W flow control
  • Compatible drivers with Windows, Linux, and UNIX
  • -40 to 85°C Operating Temperature

Description

The CP-104UL and CP-104JU 4-port universal PCI boards are designed for POS and ATM applications. They are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even UNIX. In addition, each of the boards’ RS-232 serial ports supports a fast 921.6 kbps baud rate. The CP-104UL and CP-104JU provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and they work with both 3.3 V and 5 V PCI buses, allowing the boards to be installed in virtually any available PC server.



You can also find the CP-104JU-T, CP-104UL-DB9M, and CP-104UL-DB25M models in the Multiport Serial Cards.



Easy World Automation offers the easiest way to buy the MOXA CP-104UL-T UPCI Serial Board in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

SERIAL INTERFACE
Comm. Controller MU860 (16C550C compatible)
Number of Ports 4
Bus interface 32-bit Universal PCI
Serial Standards RS-232
Connector DB44 female
Baudrate 50 bps to 921.6 kbps
Max. No. of Boards per PC 8
Stop Bits 1, 1.5, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, XON/XOFF, None
Data Bits 5, 6, 7, 8
FIFO 128 bytes
Isolation
SERIAL SIGNALS
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 -
RS-485-4w -
RS-485-2w -
SERIAL SOFTWARE FEATURES
Windows Drivers DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Drivers Linux kernel 2.4.x, Linux kernel 2.6.x, Linux kernel 3.x, Linux kernel 4.x, Linux kernel 5.x
UNIX Drivers QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD
POWER REQUIREMENTS
Input Current 120 mA @ 5 VDC
Input Voltage -
GENERAL
MTBF 558,961 hrs
LED Indicators Built-in Tx, Rx LEDs for each port
PHYSICAL CHARACTERISTICS
Dimensions 64.4 x 120 mm (2.53 x 4.72 in)
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; International Approval: KC; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore) Standard TR/SR
