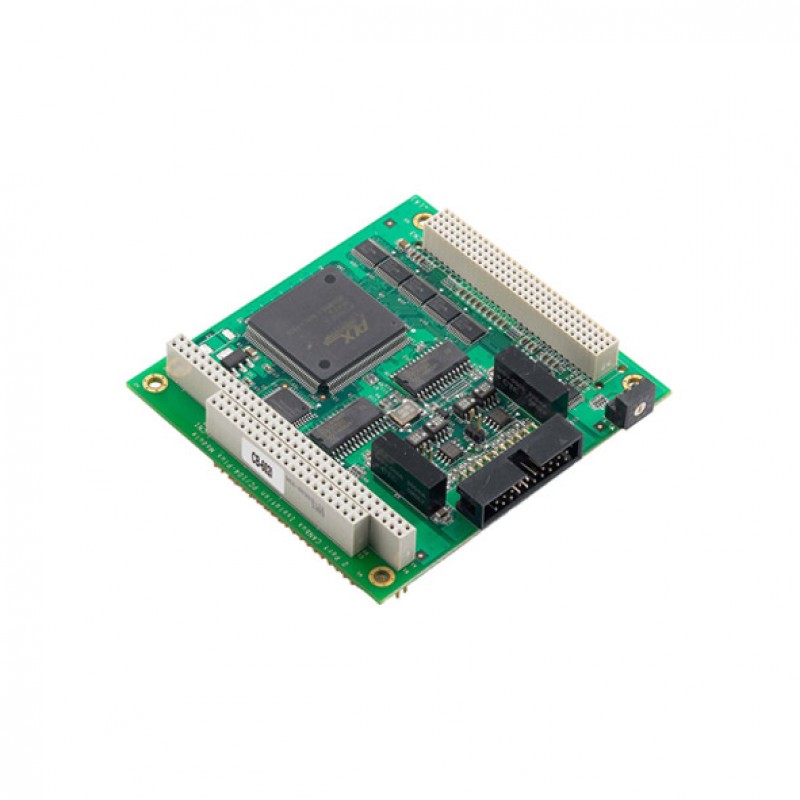

MOXA CB-602I-T w/o Cable CANBUS Module
- PC/104-Plus Serial Bus
- 2 x CAN ports (20-pin box header connector)
- Supports CAN 2.0A and CAN 2.0B
- CAN transfer rate up to 1 Mbps
- Compatible Driver for Windows
- 2KV Electrical isolation protection
- -40 to 85°C Operating Temperature
Description
Moxa’s CB-602I CAN (Controller Area Network) interface boards support the PC/104-Plus interface. Optional DB9 and DB25 connection cables are available for connecting to CAN interface devices. The CB-602I CAN interface boards use the NXP SJA1000 and PCA82C251 transceiver, which provide bus arbitration and error detection. The -40 to 85°C wide operating temperature (CB-602I-T only) and 2 kV isolation make the boards suitable for use in harsh industrial environments.
You can also find the CB-602I w/o Cable model in the Multiport Serial Cards.
Inquire
about the MOXA CB-602I-T w/o Cable CANBUS Module, designed for industrial automation solutions. Feel free to connect with our
sales team to give you the best solutions at the best global price in the
Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| SERIAL INTERFACE | |
|---|---|
| Max. No. of Boards per PC | 8 |
| Serial Isolation Protection | : 2 KV |
| CAN INTERFACE | |
| Number of Ports | 2 Ports |
| Connector | 20-pin box header |
| Baudrate | 10/20/50/125/250/500/800/1000 kbps, user-defined |
| GENERAL | |
| MTBF | 248,563 hrs |
| LED Indicators | transmit/receive |
| PHYSICAL CHARACTERISTICS | |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Dimensions | 95.9 x 90.2 mm |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
