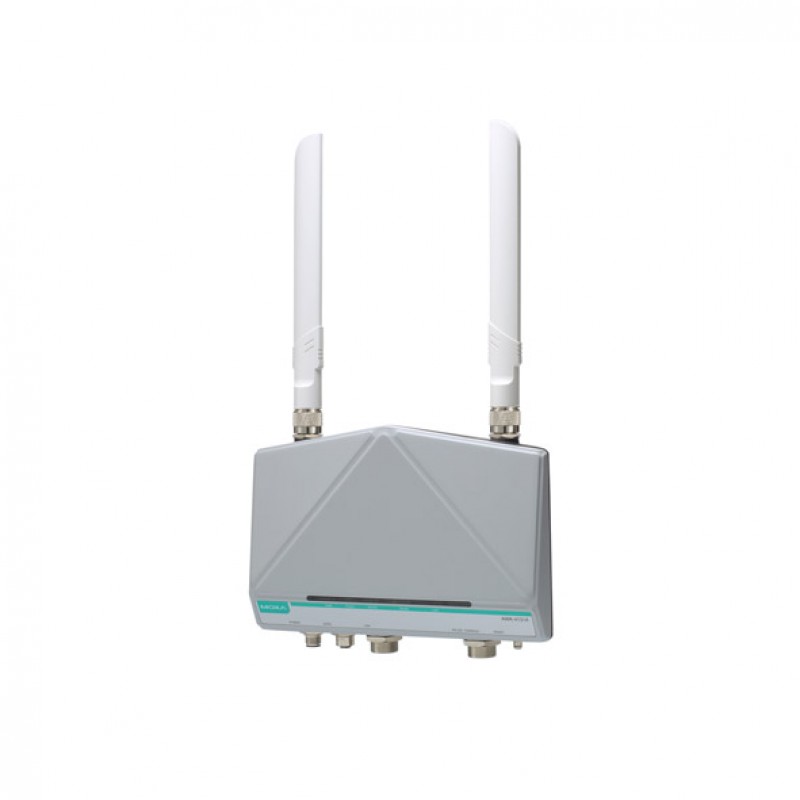

MOXA AWK-4131A-EU-T Wireless AP/Bridge/Client

  • Supports EU Frequency Bands
  • 1 x PoE Port (10/100/1000BaseT(X), RJ45 connector)
  • 2x2 MIMO 802.11a/b/g/n AP/bridge/client
  • DIN-rail, Wall, and Pole mounting
  • 12 to 48 VDC Redundant dual inputs (48 VDC for PoE)
  • IP68-rated Metal body design
  • -40 to 75°C operating temperature

Description

The AWK-4131A IP68 outdoor industrial AP/bridge/client meets the growing need for faster data transmission speeds by supporting 802.11n technology and allowing 2X2 MIMO communication with a net data rate of up to 300 Mbps. The AWK-4131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-4131A can be powered via PoE to make deployment easier. The AWK-4131A can operate on either the 2.4 GHz or 5 GHz bands and is backward-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments.

Advanced 802.11n Industrial Wireless Solution

• 802.11a/b/g/n compliant AP/bridge/client for flexible deployment

• Software optimized for long-distance wireless communication with up to 1 km line of sight and external high-gain antenna (available only on 5 GHz)

• Supports 60 clients connected concurrently

• DFS channel support allows a wider range of 5 GHz channel selection to avoid interference from existing wireless infrastructure

Advanced Wireless Technology

• AeroMag supports the error-free setup of your industrial applications’ fundamental WLAN settings

• Seamless roaming with client-based Turbo Roaming1 for < 150 ms roaming recovery time between APs (Client Mode)

• Supports AeroLink Protection for creating a redundant wireless link (< 300 ms recovery time) between APs and their clients

Industrial Ruggedness

• Integrated antenna and power isolation designed to provide 500 V insulation protection against external electrical interference

• IP68-rated metal casing for complete ingress protection for any outdoor weather

• -40 to 75°C wide operating temperature models available for smooth wireless communication in harsh environments


You can also find the AWK-4131A-JP-T and AWK-4131A-US-T models in the WLAN AP/Bridge/Client.


Easy World Automation offers the easiest way to buy the MOXA AWK-4131A-EU-T Wireless AP/Bridge/Client in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will get in touch with you to fulfill all your industrial automation needs.

Specification

Interfaces
10/100/1000BaseT(X) Ports
Modulation Type DSSS, OFDM, MIMO-OFDM
Frequency Band 2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels)
PoE Ports : 1 x Port (10/100/1000BaseT(X), RJ45 connector)
100BaseFX Ports
Wireless Security WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal
WLAN Antenna Connector 2 x N-type female
Security HTTPS/SSL, RADIUS, SSH
WLAN Operation Mode Access point, Client, Client-Router, Master, Slave, Sniffer
WLAN Standards 802.11a/b/g/n, 802.11i Wireless Security
1000BaseSFP Slots
Transmission Rates 802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps
10/100BaseT(X) Ports
Digital Inputs : 1, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0
Console Port : 1 x RS-232 (8-pin RJ45 connector)
Serial Ports
M12 Connector
Power Requirement
Input Current 0.64 A @ 12 VDC, 0.16 A @ 48 VDC
Connector M12 A-coded 5-pin male connector
Input Voltage 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption 7.68 W (max.)
Reverse Polarity Protection Supported
Physical Characteristics
Humidity 5 to 95% (non-condensing)
Dimensions Packaged 224 x 147.7 x 66.5 mm (8.82 x 5.82 x 2.62 in)
Weight (PACKAGED) 1,400 g (3.09 lb)
Housing Metal
Installation Wall mounting (standard), DIN-rail mounting (optional), Pole mounting (optional)
Standards and Certifications EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, ANATEL, MIC, NCC, RCM, SRRC, WPC, KC; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; IP68; Telcordia SR332
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
General
Management DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, Wireless Search Utility, VLAN, MXview, MXconfig
LED Indicators PWR, FAULT, STATE, WLAN, LAN
MTBF 440,764 hrs
Time Management SNTP Client
