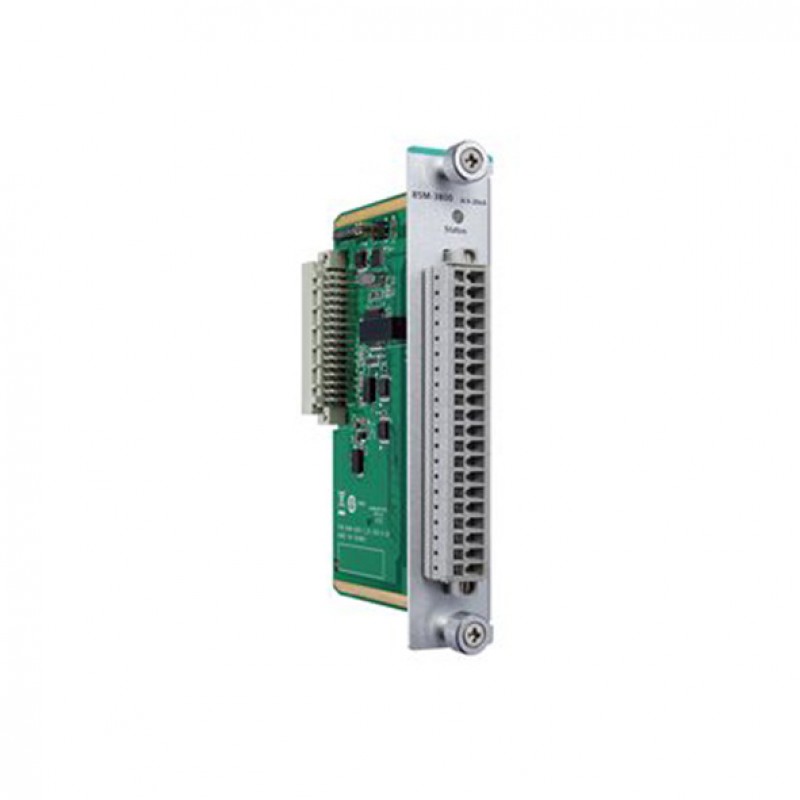

MOXA 86M-2830D-T I/O Module
- 8 x Digital outputs (24 VDC ch-to-ch isolation)
- Complies with all EN 50155 mandatory test items1
- Complies with EN 50121-4
- Rugged and compact design for harsh environments
- Expand the I/O and communication capabilities of your ioPAC 8600 Series device
- Channel-to-channel isolated digital input and output
Description
Moxa’s ioPAC 8600 Series 86M Modules include channel-to-channel isolated DIs, channel-to-channel isolated DOs, relays, and AOs to provide even more I/O options for ioPAC 8600 Series devices. Combined with the 85M modules, users have a wide variety of options to choose from, allowing them to select the I/O combination that best fits their target application. All 86M modules are designed for railway industry applications, and as such, are compliant with EN 50121-3-2, EN 50121-4, and all EN 50155 mandatory test items. In addition, these modules all support a wide operating temperature range of -40 to 75°C for reliable operation even in harsh environments.
You can also find the 86M-1620D-T and 86M-2821D-T models in the
You
can explore our wide range of products and enquire about the MOXA 86M-2830D-T I/O Module for your
industrial automation needs. Our sales experts will pave the way to buy at the
lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.
Specification
| INTERFACE | |
|---|---|
| Ports | 8 x Digital outputs (24 VDC ch-to-ch isolation) |
| PHYSICAL CHARACTERISTICS | |
| Dimensions | 25 x 128.2 x 85.5 mm (0.98 x 5.05 x 3.37 in) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC, EMI, EMS, EN 50121-4, EN 50155, Safety, Shock, Vibration |
| POWER REQUIREMENTS | |
| Output Voltage | 76.7 mA @ 24 VDC |
