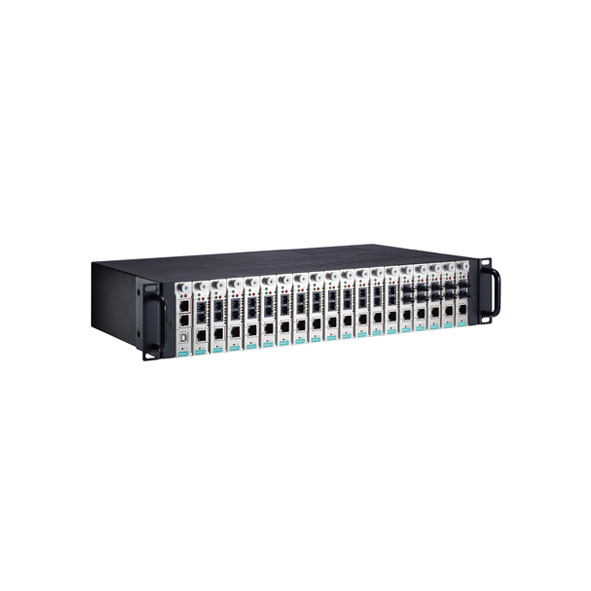

MOXA TRC-2190-DC-48V 19-inch Rackmount Chassis For Media Converter

2U rackmount chassis, 18 slots on the front panel, and CSM-MN01 managed module
48 VDC Input Voltage
-20 to 55°C Operating Temperature
19-inch chassis for rackmount use
18 slots for high-density applications
Supports dual power inputs with redundancy
Fanless chassis design reduces servicing costs
SNMP/web console for easy management

Brand: MOXA
Product Code: TRC-2190-DC-48V

Datasheet

Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet-to-Fiber Media Converters , Media Converters , Rackmount Chassis , Industrial Data Communications , Industrial Converters , Industrial Media Converters , Rackmount , Converters , MOXA TRC-2190 Series

Description

The TRC-2190 Series provides 18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules. It also supports SNMP/web console for remote management and monitoring. A TRC-2190 chassis comes with one AC or DC power input, with an optional redundant power expansion module available for greater reliability. The TRC-2190 Series’ power input module supports a fanless chassis design, as well as a -20 to 55°C operating temperature range.

You can also find the TRC-2190-AC model in the Industrial Media Converters.

Explore our extensive range of industrial automation products such as MOXA TRC-2190-DC-48V 19-inch Rackmount Chassis For Media Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

INTERFACE
No. of Slots	18 slots for media converter modules from the CSM-400 Series of Ethernet-to-fiber management modules
POWER REQUIREMENTS
Input Voltage	48 VDC
Power Consumption	3.2 A @ 48 VDC
Overload Current Protection
PHYSICAL CHARACTERISTICS
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC); Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Safety: UL 62368-1, IEC 62368-1; Vibration: IEC 60068-2-6
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
MTBF	1,055,112 hrs
Dimensions	440 x 260 x 77 mm (18.6 x 11 x 3.3 in)
Installation	19-inch rack mounting
