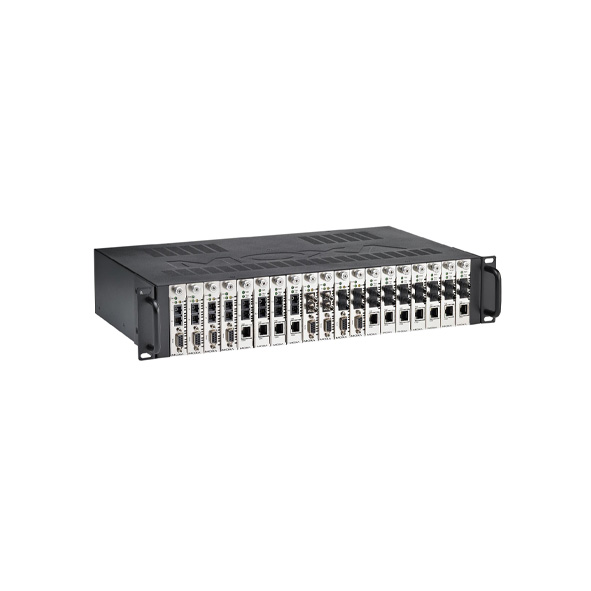

MOXA TRC-190-AC 19-inch Rackmount Chassis For Media Converter

19-inch chassis for rackmount use
19 slots for high-density applications
100-240 VAC Redundant dual inputs
0 to 60°C Operating Temperature

Brand: MOXA
Model: TRC-190-AC

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Vibration (IEC 60068-2-6)
IP protection (IP30)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet-to-Fiber Media Converters , Media Converters , Rackmount Chassis , Industrial Data Communications , Industrial Converters , Industrial Media Converters , Rackmount , Converters , MOXA TRC-190 Series

The TRC-190 rackmount chassis provides 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one AC or DC power input, with an optional redundant power expansion AC or DC module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power modules can be installed at the same time.

You can also find the TRC-190-DC-48 model in the Industrial Media Converters.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA TRC-190-AC 19-inch Rackmount Chassis For Media Converter through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

RACKMOUNT CHASSIS : INTERFACE
Ethernet Ports	No
No. of Slots	19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF142-RM Series of serial-to-fiber modules
RACKMOUNT CHASSIS : POWER REQUIREMENTS
Input Voltage	110 to 240 VAC (Redundant dual inputs)
Power Consumption	1.5 A @ 100 to 240 VAC
Overload Current Protection	Supported
RACKMOUNT CHASSIS : SECURITY
Authentication	-
Encryption	-
Security Protocols	-
RACKMOUNT CHASSIS : GENERAL
Protocols	-
Management	-
Security	-
RACKMOUNT CHASSIS : PHYSICAL CHARACTERISTICS
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC), IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: IEC 62368-1, UL 62368-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
MTBF	1,055,112 hrs
Operating Temperature	0 to 60°C (32 to 140°F)
Dimensions	440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in)
Installation	19-inch rack mounting
Weight	5200 g (11.4 lb)
