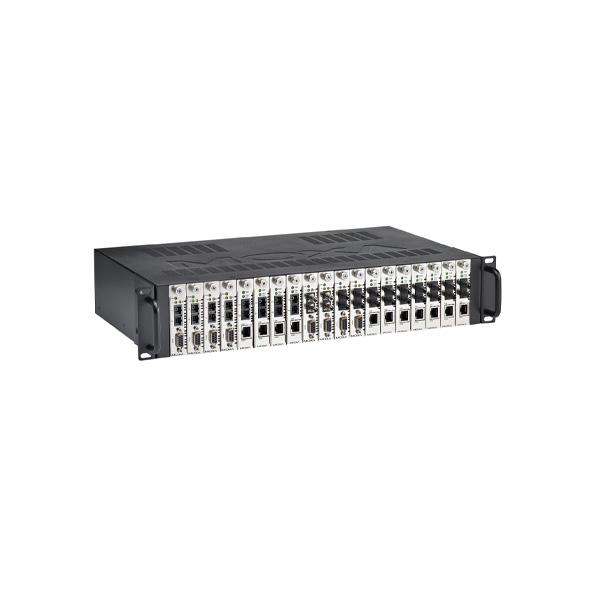

MOXA TRC-190-DC-48 19-inch Rackmount Chassis For Media Converter
- 2U, with 19 slots on the front panel
- Input VoltageInput Voltage
- 0 to 60°C Operating Temperature
- 19-inch chassis for rackmount use
- 19 slots for high-density applications
- Supports dual power inputs with redundancy
- Fanless chassis design reduces servicing costs
.png)
Description
The TRC-190 rackmount chassis provides 19 slots for media
converter modules from the CSM-200 Series of Ethernet-to-fiber modules and
TCF-142-RM Series of serial-to-fiber modules. A TRC-190 chassis comes with one
AC or DC power input, with an optional redundant power expansion AC or DC
module available to enhance reliability. The PWR-190-AC and PWR-190-DC-48 power
modules can be installed at the same time.
You can also find the TRC-190-AC model in the Industrial Media Converters.
Enjoy the ease of online inquiries for the MOXA TRC-190-DC-48 19-inch Rackmount Chassis For Media Converter. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| INTERFACE | |
|---|---|
| Ethernet Ports | |
| No. of Slots | 19 slots for media converter modules from the CSM-200 Series of Ethernet-to-fiber modules and TCF142-RM Series of serial-to-fiber modules |
| POWER REQUIREMENTS | |
| Input Voltage | 48 VDC (Redundant dual inputs) |
| Power Consumption | 3.2 A @ 36 to 53 VDC |
| Overload Current Protection | Supported |
| SECURITY | |
| Authentication | - |
| Encryption | - |
| Security Protocols | |
| GENERAL | |
| Protocols | - |
| Management | - |
| Security | - |
| PHYSICAL CHARACTERISTICS | |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV(AC), 1 kV(DC), IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: IEC 62368-1, UL 62368-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| MTBF | 1,055,112 hrs |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Dimensions | 440 x 260 x 88 mm (17.32 x 10.24 x 3.46 in) |
| Installation | 19-inch rack mounting |
| Weight | 5200 g (11.4 lb) |
