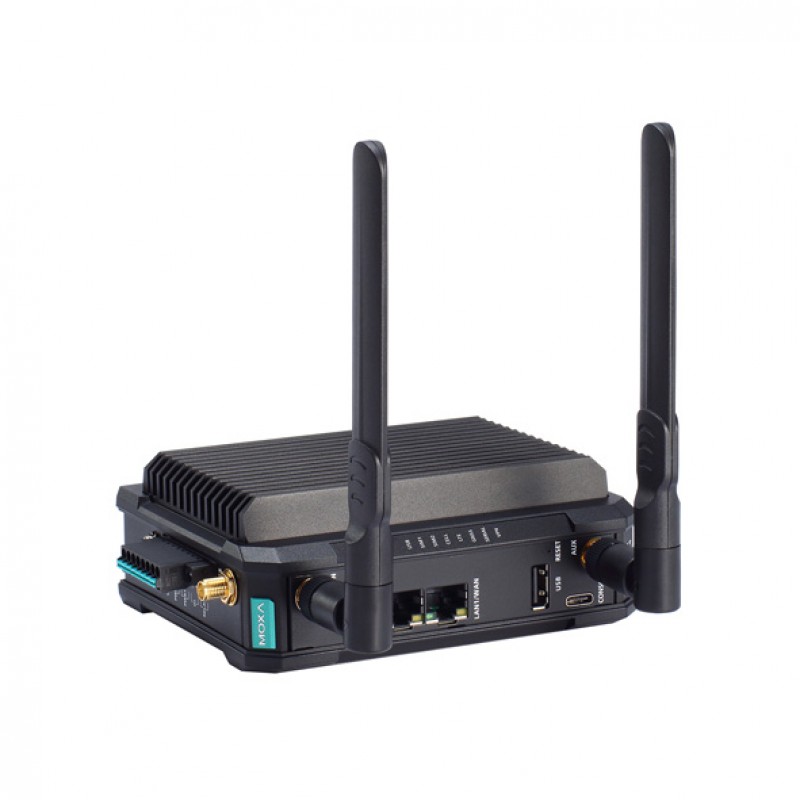

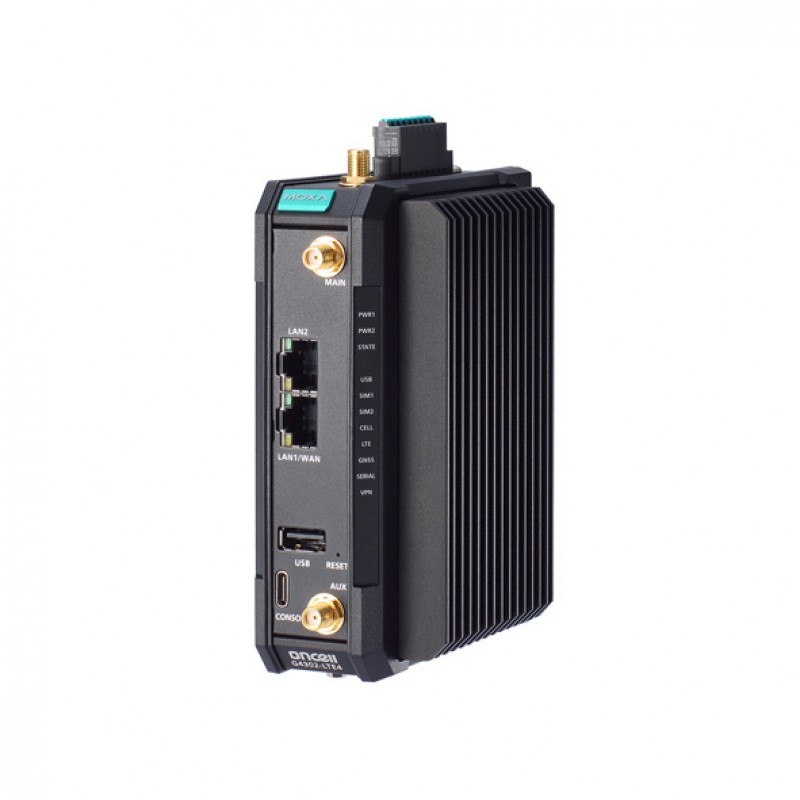

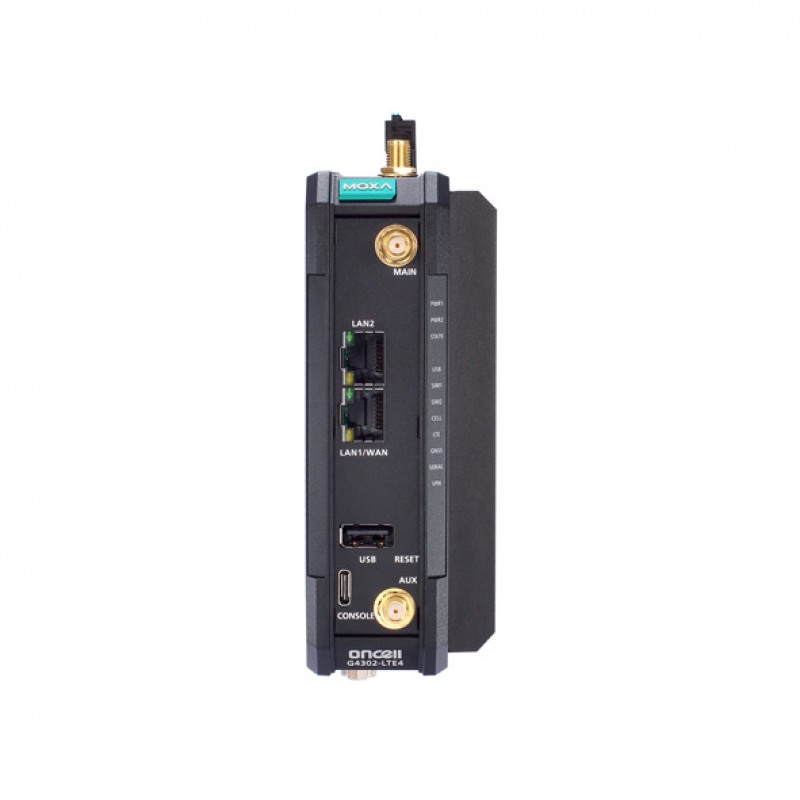

MOXA OnCell G4302-LTE4-US-T Industrial Cellular Router

  • 2 x 10/100/1000BaseT(X) Ports with managed Layer 2 switch functions
  • 1 x USB 2.0 Type A
  • 1 x RS-232/422/485 Serial Port
  • Support for Europe Cellular Bands
  • Supports MXsecurity and MXview One for distributed systems and local site management
  • Cybersecurity features based on IEC 62443-4-2
  • Dual Power Inputs for Power Redundancy
  • -30 to 70°C Operating Temperature

Description

The OnCell G4302-LTE4 Series is a reliable and powerful secure cellular router with global LTE coverage. This router provides reliable data transfers from serial and Ethernet to a cellular interface that can be easily integrated into legacy and modern applications. WAN redundancy between the cellular and Ethernet interfaces guarantees minimal downtime, while also providing extra flexibility. To enhance cellular connection reliability and availability, the OnCell G4302-LTE4 Series features GuaranLink with dual SIM cards. Moreover, the OnCell G4302-LTE4 Series features dual power inputs, high-level EMS, and a wide operating temperature for deployment in demanding environments. Through the power management function, administrators can set up schedules to fully control the OnCell G4302-LTE4 Series’ power usage and minimize power consumption when idle to save cost.

Designed for robust security, the OnCell G4302-LTE4 Series supports Secure Boot to ensure system integrity, multi-layer firewall policies for managing network access and traffic filtering, and VPN for secure remote communications. The OnCell G4302-LTE4 Series complies with the internationally recognized IEC 62443-4-2 standard, making it easy to integrate these secure cellular routers into OT network security systems.

Defend Against Malicious Threats With Advanced Cybersecurity Features

• Secure boot for system integrity and to protect against tampering attacks

• VPN functionality for secure and encrypted data communication

• Firewall policies to protect the internal network from unauthorized access and DoS attacks

• Network Address Translation (NAT) provides IP privacy between trusted and untrusted networks

• Cybersecurity features based on IEC 62443-4-2



You can also find the OnCell G4302-LTE4-US and OnCell G4302-LTE4-JP-T models in the Industrial Cellular Routers And Gateways.



You can explore our wide range of products and enquire about the MOXA OnCell G4302-LTE4-US-T Industrial Cellular Router for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Specification

Interface
Memory card slot for storage
MicroUSB
SIM card slot 2 Push-eject tray type slots
WAN
LAN : 2 RJ45 10/100Mbps Ports
USB 1 USB Type-A Port
Band Options LTE B2 (1900 MHz) / B4 (1700/2100 MHz (AWS)) / B5 (850 MHz) / B12 (700 MHz) / B13 (700 MHz) / B14 (700 MHz) / B66 (1700 MHz) / B25 (1900 MHz) /B26 (850 MHz) /B71 (600 MHz) UMTS/HSPA B2 (1900 MHz) / B4 (1700 MHz (AWS)) / B5 (850 MHz)
FXO / FXS
DSL
Digital Input and Output 1 channel, -30 to +3 V for state 0, +13 to +30 V for state 1
Serial port : 1 RS-232/422/485
Alert Output
GNSS Interface
GNSS Bands GPS (1575.42 MHz), GLONASS (1597.52 MHz), Galileo (1575.42 MHz), BeiDou (1561.098 MHz)
GNSS Antenna Connectors 1 SMA female
Radio specifications
2G , 3G , 4G Standards LTE CAT 4, HSPA, UMTS, EDGE, GPRS, GSM
Radio Connection type GuaranLink
4G / 3G / 2G Antenna 2 SMA female
WiFi Gain Antenna
4G / 3G / 2G Gain Antenna -
Maximum WiFi data transfer speed -
Maximum data transfer speed of 2G -
Maximum data transfer speed of 3G -
Maximum data transfer speed of 4G -
WiFi Radio Frequency
2G network frequency -
3G network frequency UMTS/HSPA B2 (1900 MHz) / B4 (1700 MHz (AWS)) / B5 (850 MHz)
4G network frequency LTE B2 (1900 MHz) / B4 (1700/2100 MHz (AWS)) / B5 (850 MHz) / B12 (700 MHz) / B13 (700 MHz) / B14 (700 MHz) / B66 (1700 MHz) / B25 (1900 MHz) /B26 (850 MHz) /B71 (600 MHz)
Number of radio channels -
Maximum direct range -
Maximum WiFi Output Power -
Radio Channel Bandwidth -
Software Specifications
VPN -
Firewall Filter: DDoS, Ethernet protocols, ICMP, IP address, MAC address, Ports
WPS
Serial performance -
General
LED Indicators PWR1, PWR2, STATE, USB, SIM1, SIM2, CELL, LTE, GNSS, SERIAL, VPN
Operating mode LTE router
Management GuaranLink, Power Management, Back Pressure Flow Control, LLDP, Syslog, Wireless Search Utility, MXview One, MXconfig, MXsecurity, MRC Quick Link2
Standards and protocols
Protocols SNTP Client, HTTPS, NAT, GuaranLink, DHCP server, DDNS, ARP, Telnet, TCP/IP, UDP, SMTP, Remote SMS Control, Syslog, SNMPv1/v2c/v3, Serial Console, Telnet Console, Web Console, Wireless Search Utility
Serial port standard RS-232/422/485
Features and capabilities
3G phone calls
Create and edit phonebook -
Send and receive SMS
Security
Security and Encryption DES, 3DES, AES-128, AES-192, AES-256
Serial security -
SSID -
Power Requirements
Power Consumption (Output Adapter) 7.6 W (typ.) 11.52 W (max.)
POE Support
Battery
Type of power input Terminal block
Buttons
Power button
3G / WAN button
WPS button
Reset
LED Indicators
Phone
SMS
WLAN
4G / 3G / 2G
LAN
Power
Internet
Wireless Signal Strength -
WPS
Physical Characteristics
Dimensions 125 x 46.2 x 100 mm (4.92 x 1.82 x 3.94 in)
Weight 610 g (1.34 lb)
Operating Temperature -30 to 70°C (14 to 131°F)
Type of Use Industrial environment
Standards and Certifications EMC, EMI, EMS, Freefall, ATEX, IECEx, Class I Division 2, FCC, PTCRB, EN 303 413, EN 301511, EN 301908-1/-2/-13, EN 301 489-1/-19, EN 301 489-1/-52, Safety, Shock, Vibration
