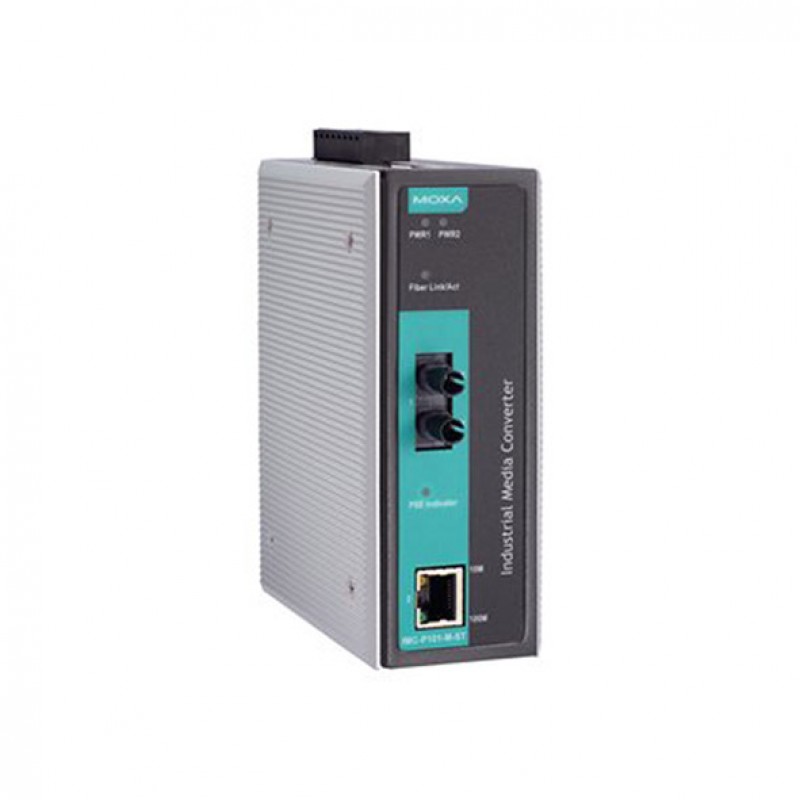

MOXA IMC-P101-S-ST-T Ethernet to Fiber Converter
- Ethernet to single-mode optical fiber converter
- 1 Ethernet port 10 / 100Mbps
- 1 100Mbps ST Optical Fiber Port
- 1 input power of 46V DC, 0.13A to 57V DC
- Suitable for work in a wide range of temperatures
- Brand: MOXA
- Product Code: IMC-P101-S-ST-T
.png)
Description
IMC-P101 Ethernet-to-fiber media converters provide Ethernet media conversion from 10/100BaseT(X) to 100BaseFX (with SC or ST connectors). These converters are classified as power source equipment (PSE), and when used in this way, they provide up to 15.4 watts to IEEE 802.3afcompliant powered devices (PDs), eliminating the need for additional wiring. The IMC-P101 converters support IEEE 802.3/802.3u/802.3x with 10/ 100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.
You can also find the IMC-P101-S-SC-T, IMC-P101-M-ST, and IMC-P101-M-SC models in the Industrial Media Converters.
Experience the convenient way to purchase the MOXA IMC-P101-S-ST-T Ethernet to Fiber Converter in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 ST Port |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3, IEEE 802.3u,IEEE 802.3af |
| General | |
| Maximum cable length for data transfer | 40Km with single mode fiber optic cable |
| MTBF | 435,210 hour |
| Power Requirements | |
| Power consumed | 46V DC, 0.13A to 57V DC |
| Type of power input | Terminal |
| POE Support | |
| Protection against reverse voltage | |
| Protection against overflow | |
| LED Indicators | |
| LNK/ACT | |
| Power | |
| Buttons | |
| DIP Switch | |
| Physical Characteristics | |
| Standards and Certifications | Safety:UL 508; EMC:EN 55032/24; EMI:CISPR 32, FCC Part 15B Class A; EMS: EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF), EN 61000-4-11; Green Product:RoHS, CRoHS, WEEE; Shock:IEC 60068-2-27; Freefall:IEC 60068-2-32; Vibration:IEC 60068-2-6 |
| Housing | Metal |
| Dimensions | 144.45x122.3x51.65mm |
| Weight | 0.525Kg |
| Operating Temperature | -40 to 75 ° C |
| Storage Temperature | -40 to 85 ° C |
| Operation Humidity | 5% to %95 non-condensing |
| Installation | Din-rail and wall mount |
