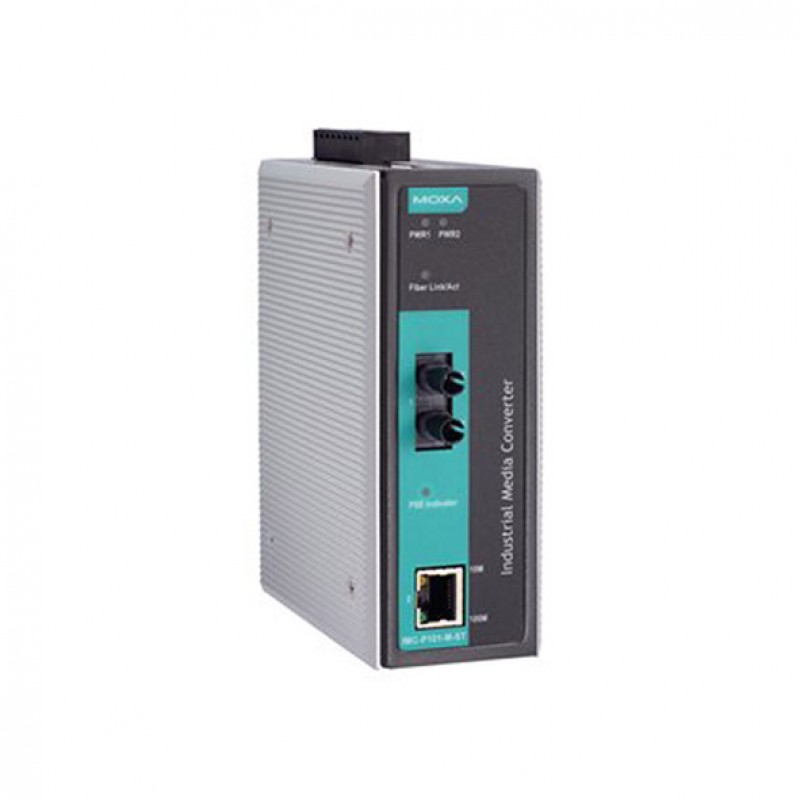

MOXA IMC-P101-M-ST Ethernet to Fiber Converter
- Ethernet to multimode fiber-optic Converter
- 1 10/100 Mbps Ethernet port
- 1 100 Mbps ST fiber-optic Port
- Input power 46V DC, 0.13A to 57V DC
- Brand: MOXA
- Product Code: IMC-P101-M-ST
.png)
Description
IMC-P101 Ethernet-to-fiber media converters provide Ethernet media conversion from 10/100BaseT(X) to 100BaseFX (with SC or ST connectors). These converters are classified as power source equipment (PSE), and when used in this way, they provide up to 15.4 watts to IEEE 802.3afcompliant powered devices (PDs), eliminating the need for additional wiring. The IMC-P101 converters support IEEE 802.3/802.3u/802.3x with 10/ 100M, full/half-duplex, and MDI/MDI-X auto-sensing, providing a complete solution for your industrial Ethernet network.
You can also find the IMC-P101-M-SC-T, IMC-P101-S-ST, and IMC-P101-S-SC models in the Industrial Media Converters.
Enjoy the ease of online
inquiries for the MOXA IMC-P101-M-ST Ethernet to Fiber Converter. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | : 1 Port |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | : 1 ST Port |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| M12 port | |
| Alert Output | |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3, IEEE 802.3u,IEEE 802.3af |
| General | |
| Maximum cable length for data transfer | 5Km with multi mode fiber optic cable |
| MTBF | 435,210 hour |
| Power Requirements | |
| Power consumed | 46V DC, 0.13A to 57V DC |
| Type of power input | Terminal |
| POE Support | |
| Protection against reverse voltage | |
| Protection against overflow | |
| LED Indicators | |
| LNK/ACT | |
| Power | |
| Buttons | |
| DIP Switch | |
| Physical Characteristics | |
| Standards and Certifications | FCC Class A , UL, CE, UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone2 Ex nA nC op is IIC T4 Gc, IECEx Ex nA nC IIC T4 Gc , : EN 55022/24 , CISPR 22, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (EFT), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF) , EN 61000-4-11 , RoHS, CRoHS, WEEE , IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, DNV, GL |
| Housing | Metal |
| Dimensions | 144.45x122.3x51.65mm |
| Weight | 0.525Kg |
| Operating Temperature | 0 to 60 ° C |
| Storage Temperature | -40 to 85 ° C |
| Operation Humidity | 5% to %95 non-condensing |
| Installation | Din-rail and wall mount |
