Description

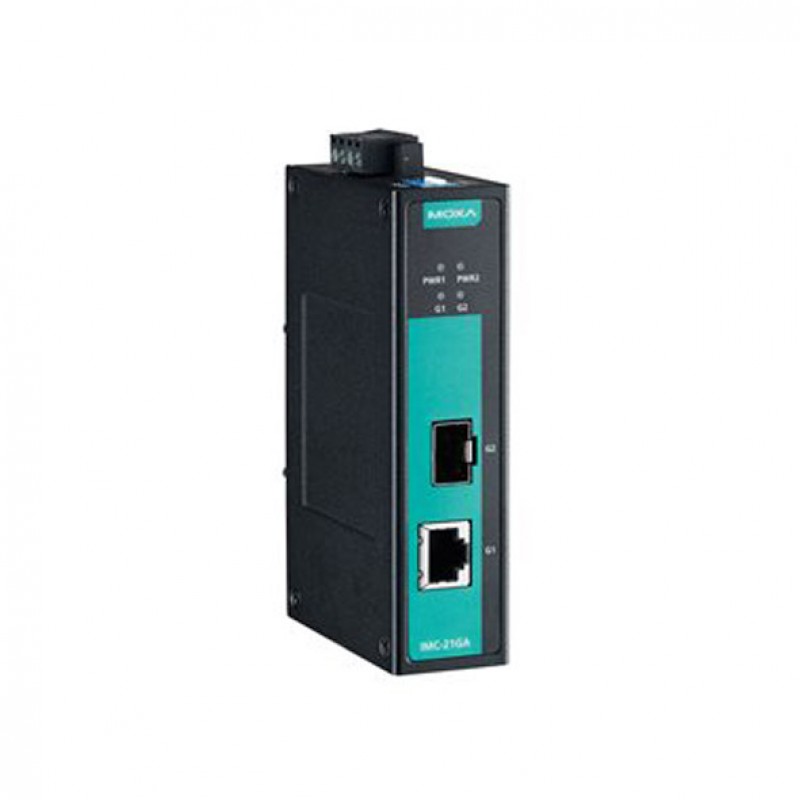

The IMC-21GA industrial Gigabit media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-100/1000Base-SX/LX or selected 100/1000Base SFP module media conversion. The IMC-21GA supports IEEE 802.3az (Energy-Efficient Ethernet) and 10K jumbo frames, allowing it to save power and enhance transmission performance. All IMC-21GA models are subjected to a 100% burn-in test and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.
You can also find the IMC-21GA model in the Industrial Media Converters.
Explore our extensive range of
industrial automation products such as MOXA IMC-21GA-T Ethernet to Fiber Converter in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Submit your inquiry to enjoy the on-time delivery service. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| 10/100Mb RJ45 (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | : 1 Port |
| 10/100Mb (Megabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 1000Mb Fiber optic multi mode (Gigabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb Fiber optic single mode (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 1 Port |
| M12 port | |
| Alert Output | |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3az |
| General | |
| Maximum cable length for data transfer | - |
| MTBF | 2,762,058 hour |
| Power Requirements | |
| Input Voltage | 12 to 48 VDC |
| Input Current | 284.7 mA @ 12 to 48 VDC |
| Overload Current Protection | Supported |
| Type of power input | Terminal block |
| Power Consumption | 284.7 mA @ 12 to 48 VDC |
| Physical Characteristics | |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; MIL-HDBK-217F |
| Housing | Metal |
| Dimensions | 30 x 125 x 79 mm (1.19 x 4.92 x 3.11 in) |
| Weight | 170 g (0.37 lb) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Installation | DIN-rail mounting |
