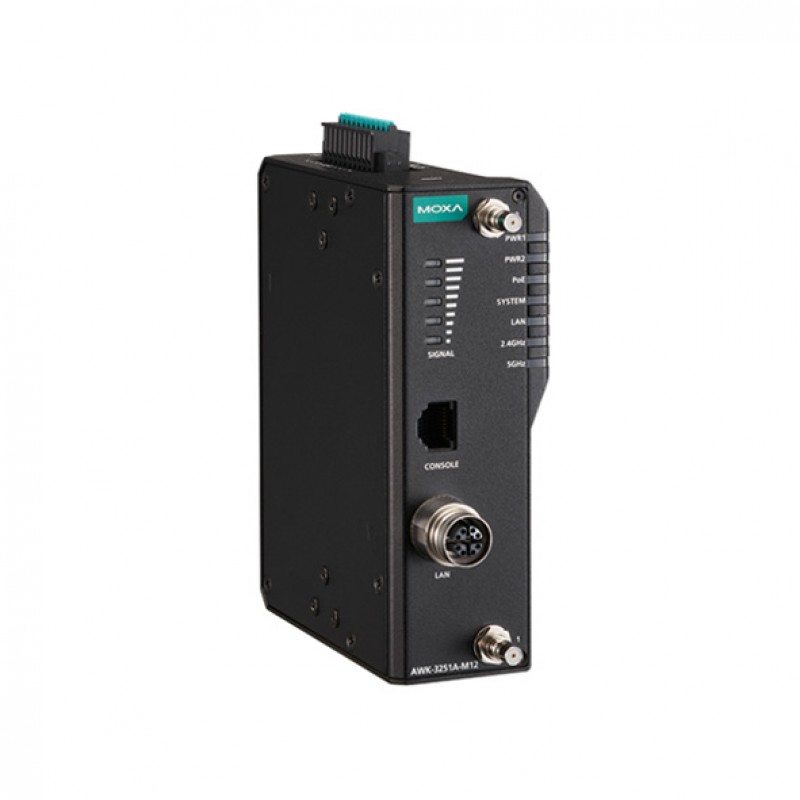

MOXA AWK-3251A-M12-RCC-UN Wireless AP/Client

  • Supports UN Frequency Bands
  • 1 x 10/100/1000BaseT(X) Port (M12 connector)
  • Supports IEEE 802.3at PoE for Ethernet port
  • IP30-rated Metal body design
  • IEEE 802.11a/b/g/n/ac Wave 2 AP/client
  • 12 to 48 VDC, 48 VDC (PoE) Redundant dual inputs
  • DIN-rail and Wall mounting
  • -25 to 60°C operating temperature

Description

The AWK-3251A-RCC Series industrial wireless AP/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology. The Auto Carriage Connection (ACC) feature enables easy deployment of wireless devices and increases the reliability of wireless carriage backbone networks. The AWK-3251A-RCC Series is also optimized for passenger Wi-Fi services and supports up to 120 client connections. The AWK-3251A-RCC Series complies with sections of the EN 50155 standard specifications covering operating temperature, power input voltage, surge, ESD, and vibration, making the product suitable for a variety of industrial applications. The AWK-3251A-RCC Series can be powered via PoE to facilitate flexible deployment and can operate concurrently on both the 2.4 and 5 GHz bands in AP mode.



You can also find the AWK-3251A-M12-RCC-UN-CT-T and AWK-3251A-M12-RCC-UN-T models in the Rail Wireless LAN.



Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA AWK-3251A-M12-RCC-UN Wireless AP/Client through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interfaces
10/100/1000BaseT(X) Ports : 1 PoE Port
Modulation Type -
Frequency Band 2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels), 5.745 to 5.825 GHz (5 channels)
PoE Ports : 1 x Port (M12 X-coded 8-pin female connector), Supports IEEE 802.3at PoE
100BaseFX Ports
Wireless Security WEP encryption (64-bit and 128-bit), WPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2/WPA3-Personal
WLAN Antenna Connector QMA
Security HTTPS/SSL, RADIUS, SSH
WLAN Operation Mode Access point, Client, Client-Router, Master, Slave, Sniffer, ACC
WLAN Standards 2.4 GHz: 802.11b/g/n with 256 QAM support, 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
1000BaseSFP Slots
Transmission Rates 2.4 GHz: 802.11b: 1 to 11 Mbps, 802.11g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps, 802.11ac: 6.5 to 400 Mbps; 5 GHz: 802.11a: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps, 802.11ac: 6.5 to 867 Mbps
10/100BaseT(X) Ports
Digital Inputs : 2, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0
Console Port : 1 x RS-232 (8-pin RJ45 connector)
Serial Ports
M12 Connector
Power Requirement
Input Current 12-48 VDC, 2.01-0.5 A
Connector 1 removable 10-contact terminal block(s)
Input Voltage 12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption 24.12 W (max.)
Reverse Polarity Protection
Physical Characteristics
Humidity 5 to 95% (non-condensing)
Dimensions Packaged 45 x 130 x 118 mm (1.77 x 5.12 x 4.65 in)
Weight (PACKAGED) 800 g (1.76 lb)
Housing Metal
Installation DIN-rail mounting, Wall mounting (with optional kit)
Standards and Certifications EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m; Safety: IEC 60950-1, IEC 62368-1, UL 62368-1; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Radio: EN 300 328, EN 301 489-1/17, EN 301 893, FCC, MIC, TELEC, NCC, RCM, SRRC, IC; IP30; Telcordia SR332
Operating Temperature -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
General
Management DHCP Server/Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, MXconfig
LED Indicators PWR1, PWR2, PoE, System, LAN, 2.4GHz, 5GHz, SIG
MTBF 838,684 hrs
Time Management SNTP Client
