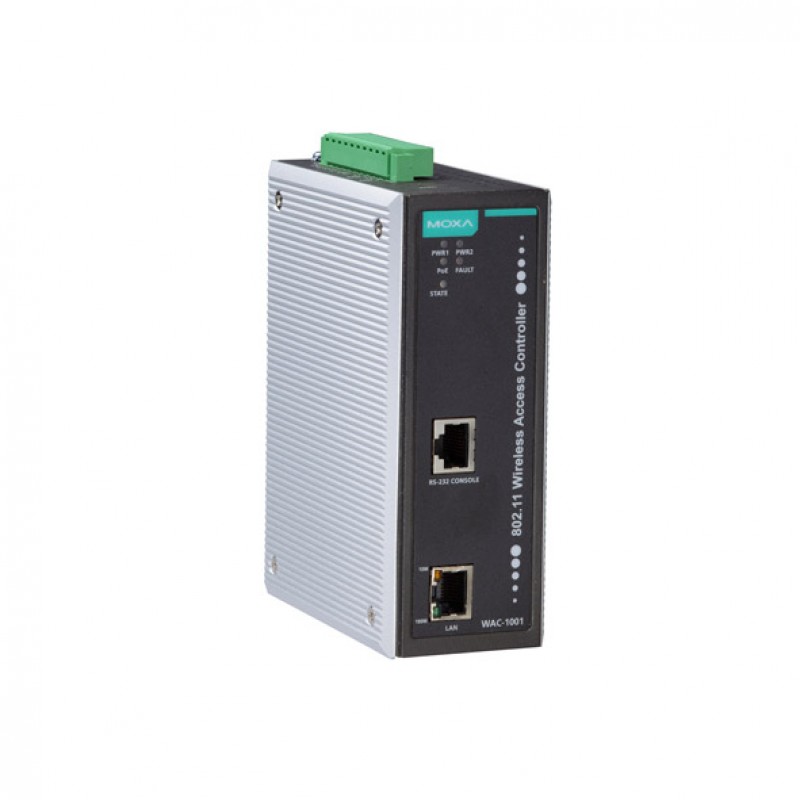

MOXA WAC-1001-T Wireless Access Controller
- 1 x 10/100/1000BaseT(X) Port (RJ45 connector)
- 1 x RS-232 Console Port (8-pin RJ45 connector)
- IEEE 802.11i-compliant wireless security
- DIN-rail and Wall mounting
- IP30-rated Metal body design
- 12 to 48 VDC Redundant dual power inputs
- -40 to 75°C operating temperature
.png)
Description
The goal of zero-latency roaming is to create networks that maintain seamless communications as clients switch from one access point to another. As part of its AWK-RTG Series, Moxa has introduced the WAC-1001 wireless access controller that uses controller-based Turbo Roaming to achieve less than 50 ms roaming on three channels. This advanced roaming capability securely hands off clients at speeds so high that wireless clients can enjoy seamless roaming between APs, with virtually no interruption in connectivity.
You can also find the WAC-1001 in the Rail Wireless Access Controller.
You can explore our wide range of
products and enquire about the MOXA WAC-1001-T Wireless Access Controller for your industrial automation needs. Our
sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
Specification
| Interface | |
|---|---|
| 10/100/1000BaseT(X) Ports | : 1 x RJ45 Port |
| Alarm Contact Channels | : 1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Serial Interface | |
| Console Port | 1 x RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1) |
| Flow Control | RTS/CTS, XON/XOFF |
| Parity | None, Even, Odd, Space, Mark |
| Serial Signals | RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| Wireless Access Control | |
| Controller Failover Mode | 1-on-1 hot backup |
| Handover Time | 50 ms |
| Roaming Support | - |
| WLAN Products Supported | 110 radios |
| General | |
| Management | IPv4, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, TFTP, Web Console, Wireless Search Utility |
| Security | HTTPS/SSL, RADIUS, SSH |
| Time Management | NTP Client, SNTP |
| MTBF | 447,425 hrs |
| Supported Devices | AWK-RTG Series, TAP Series |
| Power Requirements | |
| Input Current | 0.6 A @ 12 VDC, 0.15 A @ 48 VDC |
| Input Voltage | 12 to 48 VDC, Redundant dual inputs |
| Operating Voltage | - |
| Source of Input Power | PoE (IEEE 802.3af) |
| Physical Characteristics | |
| Housing | Metal |
| Dimensions | 52.85 x 135 x 105 mm (2.08 x 5.32 x 4.13 in) |
| Weight | 1,060 g (2.34 lb) |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Safety: EN 60950-1, IEC 60950-1, UL 60950-1; Green Product: RoHS, CRoHS, WEEE; IP30; Telcordia SR332 |
