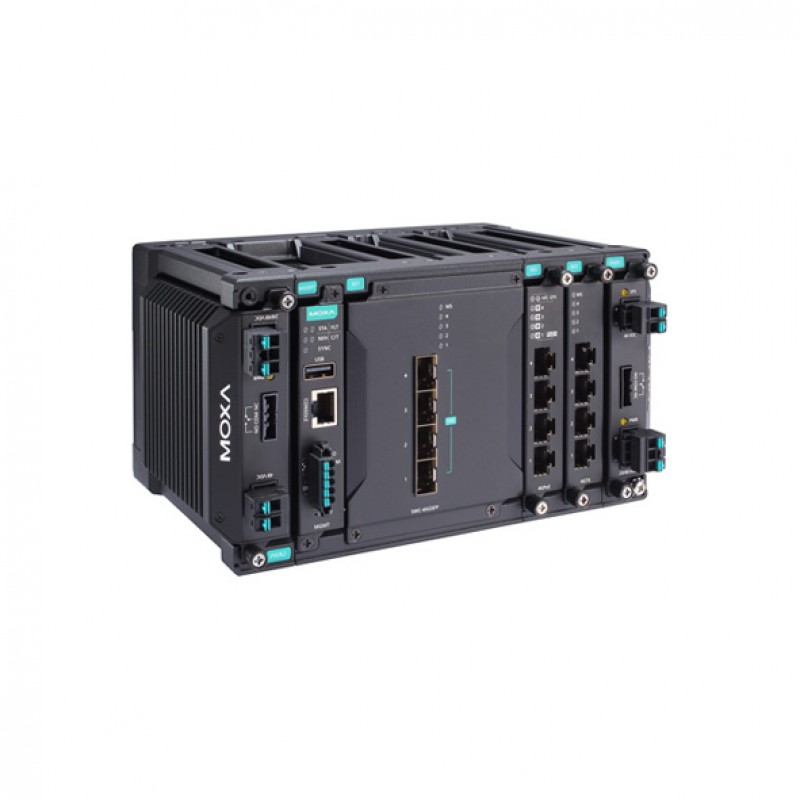

MOXA MDS-G4012-4XGS-T Modular Managed Ethernet Switch
- Modular Managed Ethernet Switch
- Pre-installed Modules: 4 x Embedded 10 Gigabit ports
- 2 x Slots for optional 4-port FE/GE modules
- 24 to 48 VDC or 110 to 220 VDC/VAC Input power ranges
- IP40-rated Rugged die-cast design
- DIN-rail, Wall, and Rack mounting
- -40 to 75°C operating temperature range
.png)
Description
The MDS-G4012-4XGS Series modular switches support 4 10GbE +
8 Gigabit ports, including 4 embedded ports, 2 interface module expansion
slots, and 2 power module slots to ensure sufficient flexibility for a variety
of applications. The highly compact MDS-G4012-4XGS Series is designed to meet
evolving network requirements, ensuring effortless installation and
maintenance, and features a hot-swappable module design that enables you to
easily change or add modules without shutting down the switch or interrupting
network operations.
The multiple Ethernet modules (RJ45 and SFP) and power units (24/48 VDC and 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4012-4XGS Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and highly durable housing, the MDS-G4012-4XGS Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual LV or HV power modules provides redundancy for high reliability and availability and also offers flexibility to accommodate the power requirements of different applications.
In addition, the MDS-G4012-4XGS Series features an
HTML5–based, user-friendly web interface providing a responsive, smooth user
experience across different platforms and browsers.
You can also find the MDS-G4020-4XGS-T model in the DIN-Rail Ethernet Switches.
Enjoy the ease of online inquiries for the MOXA MDS-G4012-4XGS-T Modular Managed Ethernet Switch. You can
submit your inquiry on our website and get the friendliest communication with
our experts to choose high-quality industrial automation products at a
reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 12 Ports |
| 10/100Mb RJ45 (Megabit) Ports | Up to 8 ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | Up to 8 ports |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | Up to 8 ports |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x 10G SFP+ Slots, 6 x Slots for optional 4-port FE/GE modules, 1 x Console Port, 1 x USB Port (Type A connector), 1 x Digital Input Channel (On MGMT Module), 3 x Alarm Contact Channel (On MGMT, PWR1, PWR2 Module) |
| Features and capabilities | |
| Backup | |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | With PWR-HV-P48-A/PWR-HV-NP installed: Max. 0.38 A @ 110 VDC, Max. 0.20 A @ 220 VDC, Max. 0.75 A @ 110 VAC, Max. 0.48 A @ 220 VAC; With PWR-LV-P48-A/PWR-LV-NP installed: Max. 1.90 A @ 24 VDC, Max. 0.95 A @ 48 VDC; EPS (PoE models only): Max. 8.2 A @ 48 VDC |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | With PWR-HV-P48–A installed: 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC; With PWR-LV-P48–A installed: 24/48 VDC, PoE: 48 VDC; With PWR-HV-NP installed 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz; With PWR-LV-NP installed: 24/48 VDC |
| Operating Voltage | With PWR-HV-P48–A installed: 88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC; With PWR-LV-P48–A installed: 18 to 72 VDC, PoE: 46 to 57 VDC; With PWR-HV-NP installed: 88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz; With PWR-LV-NP installed: 18 to 72 VDC |
| Power Consumption | With PWR-HV-P48-A/PWR-HV-NP installed: Max. 41.8 W @ 110 VDC, Max. 44.2 W @ 220 VDC, Max. 46.6 W @ 110 VAC, Max. 46.5 W @ 220 VAC; With PWR-LV-P48-A/PWR-LV-NP installed:, Max. 45.8 W @ 24 VDC, Max. 45.8 W @ 48 VDC |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 794,532 hrs |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 197 x 115 x 163.25 mm (7.76 x 4.53 x 6.43 in), 212 x 115 x 163.25 mm (8.35 x 4.53 x 6.43 in) with dual PWR-HV-P48-A/PWR-LV-P48-A power modules installed |
| Housing | Rugged die-cast |
| Installation | DIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: EN 62368-, IEC 62368-1, UL 62368-1, IEC 60950-1, UL 61010-2-201, EN 61010-2-201; EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Railway: EN 50121-4; Traffic Control: NEMA TS2; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Vibration: IEC 60068-2-6; Power Substation: IEC 61850-3, IEEE 1613; IP40; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 3,030 g (6.68 lb) |
| Standards and protocols | |
| Protocols and work standards | STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MRP, MSTP, Network Loop Protection, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, EtherNet/IP, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Modbus TCP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog |
| Protocols and management standards | IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, DHCP Relay, Agent (Option 82), Fiber check, RARP, LLDP, Linkup Delay, Port Mirroring (SPAN, RSPAN), SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
