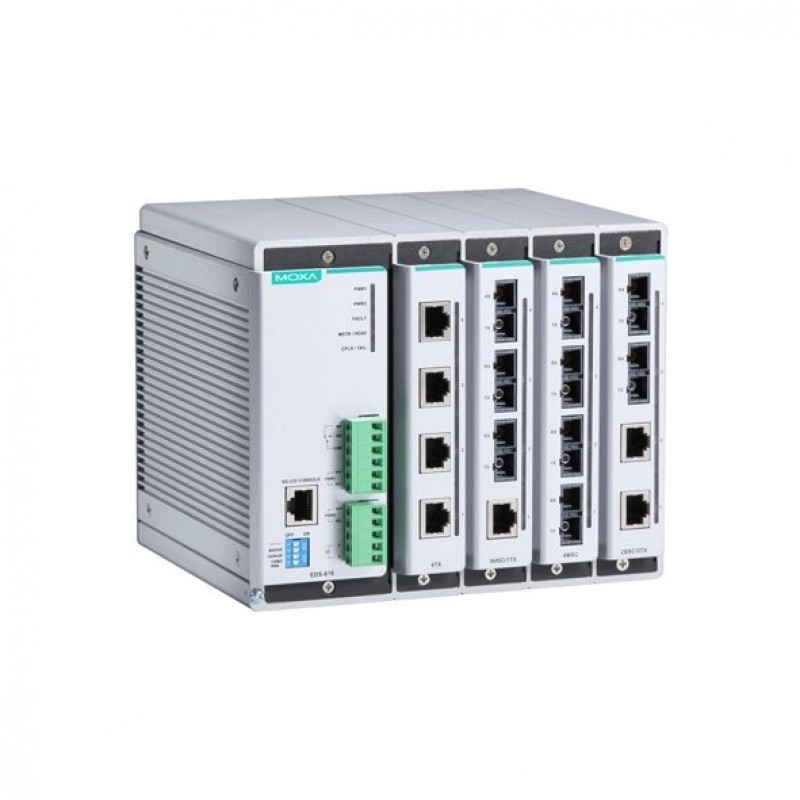

MOXA EDS-616-T Compact Modular Managed Ethernet Switches
- 4 x 4-Port Slots for up to 16 x 10/100BaseT(X) and/or 100-BaseFX ports
- IP30-rated Meta body design
- Din-rail and Wall mounting
- 12/24/48 VDC Redundant dual inputs
- -40 to 75°C operating temperature
- Brand: MOXA
- Product Code: EDS-616-T
.png)
Description
The versatile modular design of the compact EDS-616 Series allows users to combine fiber and copper modules to create switch solutions suitable for any automation network. The EDS-616’s modular design lets you install up to 16 Fast Ethernet ports, and the advanced Turbo Ring and Turbo Chain (recovery time < 20 ms) technology, RSTP/STP, and MSTP help increase the reliability and availability of your industrial Ethernet network. Models with an extended operating temperature range of -40 to 75°C are also available. The EDS-616 Series supports several reliable and intelligent functions, including IEEE 1588 PTPv2, EtherNet/IP, Modbus TCP, LLDP, DHCP Option 82, SNMP Inform, QoS, IGMP snooping, VLAN, TACACS+, IEEE 802.1X, HTTPS, SSH, SNMPv3, and more, making the Ethernet switches suitable for any harsh industrial environment.
You can also find the EDS-616 model in the DIN-Rail Ethernet Switches.
Enjoy the ease of online
inquiries for the MOXA EDS-616-T Compact Modular Managed Ethernet Switches. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 16 Ports |
| 10/100Mb RJ45 (Megabit) Ports | Up to 16 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | Up to 16 Ports |
| 100Mb Fiber optic single mode (Megabit) Ports | Up to 16 Ports |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Other ports | : 4 x 4-Port Slots for up to 16 x 10/100BaseT(X) and/or 100-BaseFX ports, 1 x Digital Input (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA), 1 x Alarm Contact Channel, 1 x RS-232 Console Port (10-pin RJ45 connector) |
| Features and capabilities | |
| Backup | : ABC-01 |
| LED Indicators | |
| LED Per Port | |
| Power Requirements | |
| Input Current | 2.4 A @ 12 VDC, Note: These are the input current ratings for the device with the maximum number of modules installed. |
| Power Input Plugin ( Redundant ) | |
| Input Voltage | 12/24/48 VDC |
| Operating Voltage | - |
| Power Consumption | 28.8 W @ 12 VDC, Note: These are the power consumption ratings for the device with the maximum number of modules installed. |
| General | |
| Fan / Fanless | Fanless |
| MTBF | 546937 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | |
| Physical Characteristics | |
| Dimensions | 185 x 151 x 157.4 mm (7.28 x 5.95 x 6.20 in) |
| Housing | - |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Freefall: IEC 60068-2-32, EMC EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Hazardous Locations: ATEX, Class I Division 2; Maritime: ABS, DNV, LR, NK; Railway: EN 50121-4; Safety: EN 62368-1, UL 508; Shock: IEC 60068-2-27; Traffic Control: NEMA TS2; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 2,448 g (5.40 lb) |
| Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, GMRP, GVRP, IGMP v1/v2, Port-based VLAN |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
