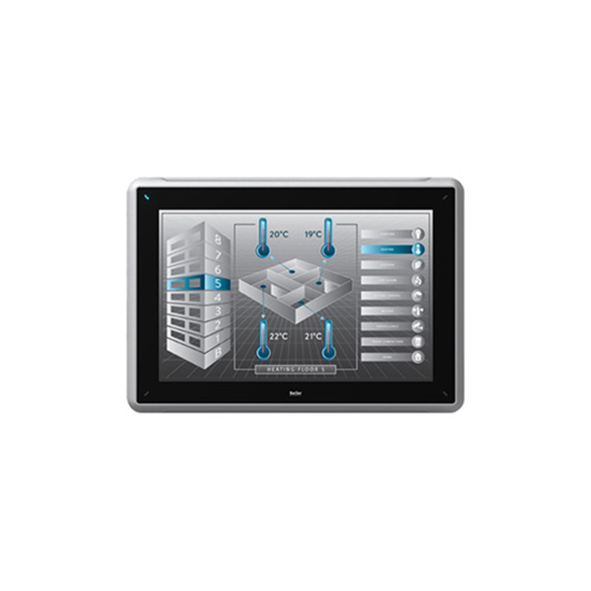

Beijer iX T15B-SC graphic touch marine HMI

  • 15.4" TFT-LCD touchscreen
  • 1280 × 800 (16:10)

  • Brand: BEIJER
  • Product Code: iX T15B-SC

Description

iX TxX operator panels Ranging from 21-inch industrial PCs to ultra-compact 4-inch panels, all models have high-performance CPUs and the latest screen technology.


Explore our extensive range of industrial automation products such as Beijer iX T15B-SC graphic touch marine HMI in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

Specification

Communication serial
Number of serial ports 2 Port combined 9pin DSUB with dual pinout
Serial port 1 RS 232 (RTS/CTS)
Serial port 2 RS 485
Serial port 3 RS 232
Ethernet communication
Number of ethernet ports 2
Ethernet port 1 1x10/100 Base-T (shielded RJ45)
Ethernet port 2 EtherCAT in CODESYS
Power Requirements
Input voltage 24 VDC (18 - 32VDC)
Power consumption (max) 24 W
Input fuse Internal DC fuse, 3.15A slow
Display
Size diagonal 15.0 inch
Resolution 1280 X 800 pixels
Backlight LED backlight
Backlight life time 50,000 hrs
Backlight brightness 450 cd/m2
Backlight dimming Industrial
Display type TFT LCD
Physical Characteristics
Mechanical size 410 x 286 x 83 mm
Touch type Resistive type
Weight 4.5 kg
Housing Powder coated aluminum
Operating temperature -10 to + 50 °C
Storage temperature -20 to + 70 °C
Shock 10G 11ms half sine
Vibration 0,7G RMS
Sealing front IP65
Sealing back IP20
Humidity <85 % non-condensed
