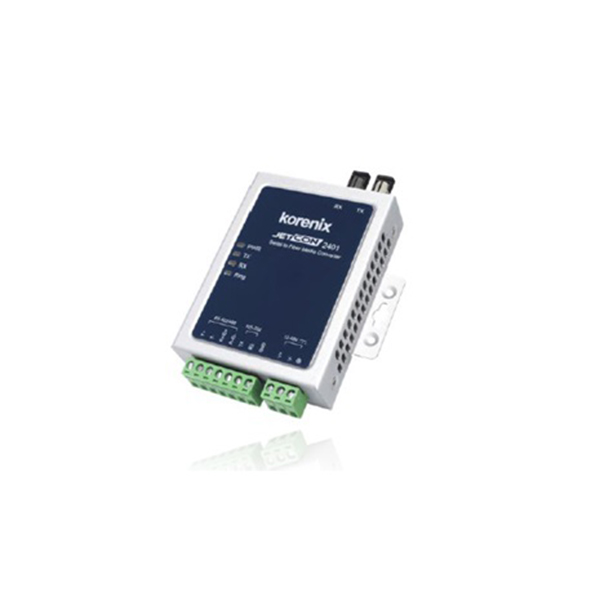

JetCon 2401 is a 1-port RS232/422/485 serial to fiber media
converter with extended fiber transmission. Single-mode and Multi-mode fiber
optic ports meet your needs for long-distance transmission up to 40KM. JetCon
2401 will automatically detect the data baud rate of the connected full-duplex serial device, ranging from 300 to 921,600bps. By moving up the DIP switch,
JetCon 2401 supports an auto-setting function without a system power reset to
change the serial interface, fiber wiring architecture, and termination of the receiver
and transmission line. Also, JetCon 2401 is specially designed for applications
requiring good immunity of EMI/EMS such as power substation, rail, and traffic
control signification systems under severe electromagnetic interference and
wide temperature range.
JetCon 2401 can be easily wall-mounted as well as mounted directly on the DIN rail. AC 24V(12~32V) or DC 24V(12~48V) is available for different operating environments. With an IP 30 rigid aluminum case, CE/FCC regulatory approvals, and a 5-year global warranty, JetCon 2401 is your reliable choice for hazardous applications.
Enjoy the ease of online inquiries for
the Beijer JetCon 2401 RS232/422/485 to fiber serial converter. You can submit your inquiry on our website and get the most friendly
communication with our experts to choose high-quality industrial automation
products at a reasonable price from our Middle East branches (UAE (Dubai), KSA
(Al Khobar, Riyadh), and Oman).
| converter : Interface | |
| 10/100Mb RJ45 (Megabit) Ports | No |
| 10/100/1000Mb RJ45 (Gigabit) Ports | No |
| 100Mb Fiber optic single mode (Megabit) Ports | JetCon2401-S : 1 x 10/100Mb ST Fiber port |
| 100Mb Fiber optic multi mode (Megabit) Ports | JetCon2401-m : 1 x 10/100Mb ST Fiber port |
| 100Mb SFP Fiber optic (Megabit) Ports | No |
| 1000Mb SFP Fiber optic (Gigabit) Ports | No |
| Number of 10/100Mb PoE port | No |
| 10/100/1000Mb (Gigabit) POE Ports | No |
| DSL | No |
| Serial port | 1 x RS-232/RS-485/RS-422 |
| USB | No |
| Other ports | No |
| Isolation | No |
| converter : Converter specifications | |
| Data transfer speed ( Baudrate ) | 300bps to 921.6Kbps |
| Maximum data transmission distance | multi mode : 5KM, single mode : 40KM |
| Minimum output power converter | multi mode : TX Power: -12dBm (Min) ~ -9dBm (Max), single mode : TX Power: -9dBm (Min) ~-8dBm (Max) |
| Sensitivity to receiving information | multi mode : -28dBm (Min), single mode : -27dBm (Min) |
| Wavelength | multi mode : 820nm, single mode : 1310nm |
| Require cable diameter | Multi-mode fiber: 50/125um or 62.5/125um, Single-mode fiber: 8/125um, 9/125um |
| converter : Serial Signals | |
| RS-232 Signals | TxD, RxD, Signal Ground |
| RS-422 Signals | TxD+, TxD-, RxD+, RxD-, Signal Ground |
| RS-485-2w Signals | TxD+, TxD-, RxD+, RxD-, Signal Ground |
| converter : Standards and protocols | |
| Ring topology | Yes |
| Point-to-point topology | Yes |
| converter : Power Requirements | |
| Maximum power consumption | 1.5Watts @ 24V(Maximum) |
| Power Consumption (Output Adapter) | - |
| Power Input Plugin ( Redundant ) | Dual modes for power input, AC 24V(12~32V)/ DC 24V(12~48V) |
| Reverse Polarity Protection | Yes |
| converter : General | |
| Fan / Fanless | Fanless |
| MTBF | - |
| converter : Physical Characteristics | |
| Dimensions | 24.7mm(H) x 74mm (W) x 99mm (D) |
| Housing | IP-30 grade aluminum metal case |
| Installation | DIN-Rail mount or desktop |
| Operating Temperature | -20 ~70°C |
| Operation Humidity | 5% ~ 95% (non-condensing) |
| Protection against excessive consumption | - |
| Standards and Certifications | EMI, EMS, Shock, Vibration, Free Fall |
| Storage Temperature | -40 ~ 80°C |
| Weight | 0.135kg without package |
| converter : LED Indicators | |
| LED Per Port | Yes |
| Power | Yes |
| converter : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | No |
| Power cable | No |
