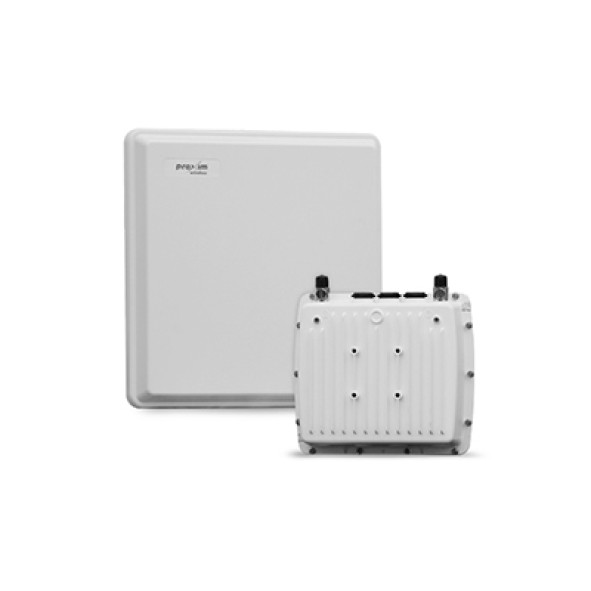

Proxim Tsunami MP-8260-BS9-WD Point-to-multiPoint Radio

Proxim Tsunami MP-8260-BS9-WD Point-to-multiPoint Radio
Proxim Tsunami MP-8260-BS9-WD Point-to-multiPoint Radio

  • Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
  • Integrated 2x2 MIMO 16dBi Dual Polarized 90-degree Sector Antenna
  • 2x2:2 MIMO
  • IP67

  • Brand: PROXIM
  • Model: Tsunami MP-8260-BS9-WD
0 reviews • Write a review
ENQUIRE NOW
Add to Wish List Compare this Product
Datasheet
  • Operating Temperature (-40 to 60°C)
  • Relative Humidity (100% relative humidity)
  • IP protection (IP67)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Beijer BoX2 base protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 base protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The Tsunami® MP-8260 series is the latest in our range of 6.4 GHz point-to-multipoint products. They support a data rate that delivers up to 300 Mbps over a 40 MHz channel. Designed specifically to work with the MP-826-CPE and MP-826-CPA products, the Tsunami® MP-8260 benefits from all features of the latest Tsunami® MultiPoint products but with the benefit of operating in the 6.4 GHz band.

The Tsunami® MP-8260 Base Stations combined with the MP-826-CPE is an ideal solution for large-scale wireless deployments and provide an excellent value proposition to WISPs planning wireless broadband last-mile access deployments.

This platform also features carrier-grade prioritization the platform supports multiple service classes and is able to prioritize voice, video, and data applications to enable granular management of customer service features.


You can place an order for the Proxim Tsunami MP-8260-BS9-WD Point-to-multiPoint Radio, which is applicable in the Railway Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Point-to-Multipoint Radio : Interfaces
Wired Ethernet Two auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data)
Wireless Protocol WORP® (Wireless Outdoor Router Protocol)
Point-to-Multipoint Radio : Antenna
Antenna Type Integrated 2x2 MIMO 16dBi Dual Polarized 90 degree Sector Antenna
Point-to-Multipoint Radio : Radio Specifications
TX Power Up to 25 dBm (dual chain)
MIMO 2x2:2
Modulation OFDM with BPSK, QPSK, QAM16, QAM64
Frequency 5.900 – 6.425 GHz (Subject to Country Regulations)
Channel Size 40 MHz, 20 MHz, 10 MHz, 5 MHz
Data Rate MCS 0 to 9 with Dynamic Data Rate Selection
TX Power Control 0 - 22 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Other Dynamic Channel Selection (DCS) based on interference detection, Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-Multipoint Radio : Management
Remote Telnet and SSH, Web GUI and SSL, TFTP, SNMPv3
SNMP SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Other Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-Multipoint Radio : Standards and Protocols
Synchronization Pass-through IEEE 1588v2 Ethernet Synchronization
Point-to-Multipoint Radio : Security
Encryption AES 128
Authentication Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-Multipoint Radio : Network
Modes Bridging, Routing (RIP v2 and IP tunneling)
IP Stack IPv4 and IPv6 simultaneously
Gateway Features DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN 802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-Multipoint Radio : Power requirements
Power Input 36 to 57 VDC via Ethernet port1 (Power over Ethernet), 12 VDC via Access port, Power should not be provided simultaneously on both ports
Power Output 48 to 57 VDC – 25 Watt on Ethernet port2 (PoE – software controlled), 12 VDC on Access port
Power Consumption 18 Watt typical
Point-to-Multipoint Radio : Physical characteristics
Safety UL 60950, CAN/CSA-C22.2 No. 60950, IEC 60950, EN 60950 (part -1 and -22)
Temperature OPERATING -40º to 60ºC (-40º to 140º Fahrenheit), STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity 100% relative humidity
IP Rating IP67
Dimensions Packaged 18.46 x 7.05 x 21.57 in (469 x 179 x 548 mm)
Dimensions Unpackaged 14.57 x 14.57 x 4.21 in (370 x 370 x 107 mm)
Weight (PACKAGED) 13.67 lbs (6.2 kg)
Weight (UNPACKAGED) 7.27 lbs (3.3 kg)
Wind Loading 200 km/h (124.2 mph)
Point-to-Multipoint Radio : Package Checklist
Package Contents One Tsunami® MP-8260-BSU/SUA with two N-type surge protected connectors Or One Tsunami® MP-8260-BS9 with integrated dual polarized antenna, One power injector and country specific power cord, One Connector weatherproofing kit (Includes all recommended weatherproofing material), One Wall / Pole mounting kit, One Antenna alignment (RJ11) dongle, One Grounding kit, One Quick Installation Guide
Point-to-Multipoint Radio : General
MTBF 250 000 hours
