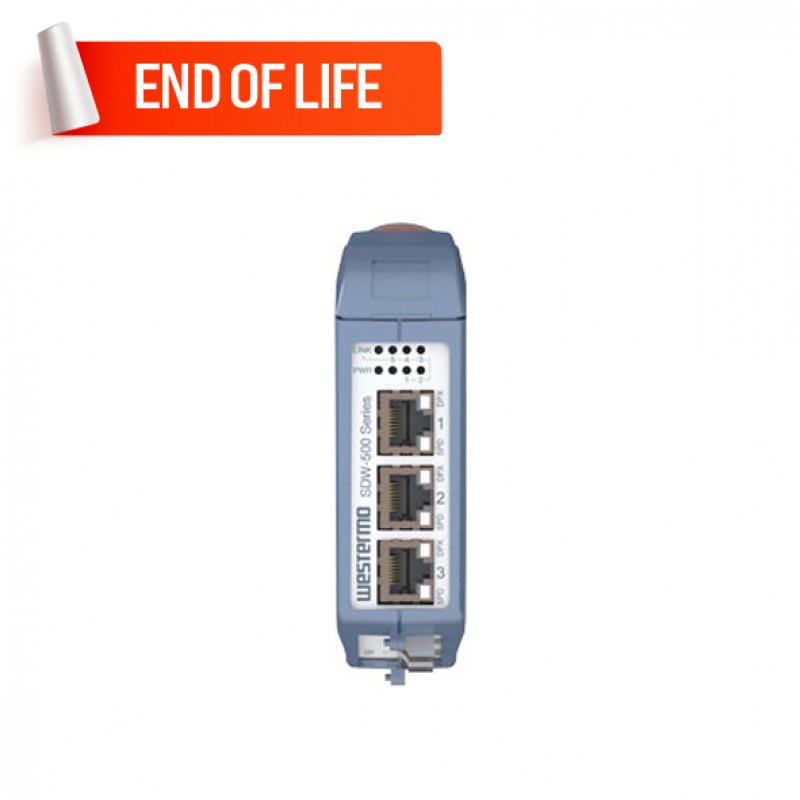

Westermo SDW-532-SM-LC15 Unmanaged Ethernet Switch

  • 3 x 10/100 Mbit/s Base T ports
  • Industrial Ethernet 5-port Switch
  • 2 x 100 Mbit/s Base FX ports LC connectors

Description

The SDW-532 is an unmanaged 5 port (3TX and 2FX) industrial Ethernet switch designed for easy use in heavy duty industrial applications. The unit supports 802.1Q long packets which allows all standard industrial Ethernet protocols to be used. A number of standard fibre optic connection types are supported including LC, SC and ST.

The SDW-532 is designed for use in industrial applications and so has dual power inputs for 10 to 57 VDC operation. Total galvanic isolation between each port is reinforced by the unique isolation provided between each chassis screen helping to avoid ground loop currents. The IP21 rating ensures that the unit can be installed in locations where condensed water may occur. Only industrial grade components are used which gives the SDW-532 an MTBF of 760,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts.

The SDW-532 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration and shock standards, all to the highest levels suitable for heavy industrial environments.

Network diagnostics are simplified with the inclusion of port mirroring on one port allowing data flow through the switch to be monitored using a network analyzer. All five ports can have data rate and flow control locked by DIP switch which can eliminate problems with old legacy Ethernet equipment that is unable to support auto negotiation.


You can place an order for the Westermo SDW-532-SM-LC15 Unmanaged Ethernet Switch, which is applicable in the Marine industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Specification

Interface
Number of ports 5 Ports
10/100Mb RJ45 (Megabit) Ports : 3 Ports
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports : 2 LC ports with a maximum cable length of 15Km
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Prots
100Mb SFP Fiber optic (Megabit) Ports
10/100/1000Mb (Gigabit) POE Ports
Serial port
USB
Features and capabilities
Backup
LED Indicators
LED Per Port
Power
Power Requirements
Maximum power consumption 30W
Power Consumption (Output Adapter) 24V DC, 1.3A
Power Input Plugin ( Redundant )
General
Fan / Fanless
MTBF 760,000 hour
Switch specifications
Most forwarding speed -
Network working layers Layer 1
Switch type UnManaged
Port Aggregation -
Physical Characteristics
Dimensions 35x121x119mm
Housing Metal
Installation Din-rail
Operating Temperature -25 to 70 ° C
Operation Humidity 5% to %95 RH
Standards and Certifications DNV 2.4, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, IP21
Storage Humidity 5% to %95 RH
Storage Temperature -25 to 70 ° C
Weight 0.2Kg
Standards and protocols
Protocols and work standards IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX
Protocols and management standards
Package Checklist
Hardware installation guide
Power adapter
Power cable
