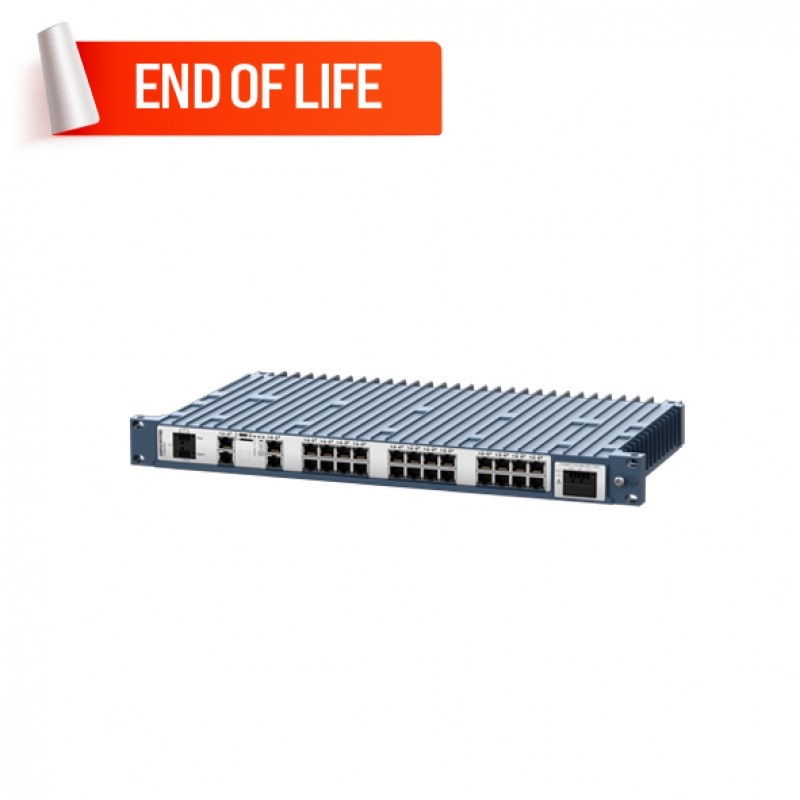

Westermo RedFox-5528-E-T28G-MV Managed Ethernet Switch

  • 19” Rackmount Managed Ethernet Switch - low voltage version, layer 3
  • 36 to 154 VDC
  • 28 x 10/100/1000 Mbit/s, Ethernet TX, RJ-45

Description

The RedFox 5500 series is designed for the core of large high-performance industrial networks and has been developed to cater to the needs of current and future industrial data networks, combining outstanding performance, durability, and reliability.

These switches are ideal for handling the big data and high bandwidth requirements typically found within transportation, manufacturing, energy, smart cities, and other applications. Integrating hardware, software, and network design support tools, this next-generation switch platform offers advanced capabilities, the lowest total cost of ownership and will create the most reliable and resilient networks on the market.

The switch is engineered to maintain uninterrupted data communication, even in exceptionally harsh environments. The RedFox 5500 series is tested and certified to withstand extreme temperatures, vibrations, and shocks. The switches only use industrial-grade components which contributes towards a market-leading mean time between failure (MTBF), maximized service life, and reduced operational and life cycle costs. Various port configurations are available, all with full gigabit speed, that can be further customized with SFP transceivers. The RedFox 5500 series is available in either a DC or AC power supply as well as a configurable I/O fault contact making the switch

ideal for monitoring in industrial applications. The RedFox 5500 series is powered by the next generation WeOS operating system, which ensures robust operation and support for an expanding range of protocols and features. In addition, recognizing the growing sophistication of cyberattacks, an extensive suite of cybersecurity tools is available.

The switches are also prepared for routing acceleration, extended cybersecurity, and time synchronization IEEE 1588v2 applications, making them an ideal solution to meet future security and bandwidth requirements.


You can place an order for the Westermo RedFox-5528-E-T28G-MV Managed Ethernet Switch, which is applicable in the Marine, Railway Transportation industries, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Specification

Interface
Number of ports 31 Ports
10/100Mb RJ45 (Megabit) Ports
10/100/1000Mb RJ45 (Gigabit) Ports : 28 Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Prots
100Mb SFP Fiber optic (Megabit) Ports
10/100/1000Mb (Gigabit) POE Ports
M12 port
Serial port
USB : 1 Micro USB Console Port
Other ports : 1 Micro SD Port and 1 I/O (1 digital in, 1 digital out) Port
Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 0.52 A at 48 VDC, 0.24 A at 110 VDC
Power Input Plugin ( Redundant ) -
Switch specifications
Most forwarding speed -
Network working layers Layer 3
Switch type Managed
Port Aggregation IEEE 802.1AX/802.3ad
Physical Characteristics
Dimensions 482,4 x 43 x 258 mm
Housing Full metal
Installation Rackmount, Railway applications
Operating Temperature -40 to +74°C (-40 to +165°F)
Operation Humidity 5% to 95%
Standards and Certifications EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, FCC Part 15.105 class B, UL/IEC/EN 60950-1 , EN 50121-4 , IEC 62236-4
Storage Humidity -
Storage Temperature -50 to +85°C
Weight 3.8 kg
Standards and protocols
Protocols and work standards IEEE 1588v2 Precision Time Protocol (PTP)
Protocols and management standards DHCP, DNS Client, DDNS, NTP Client (NTPv4), OSPFv2, RIPv1/v2, VRRPv2/v3, NAT, NAPT
Package Checklist
Hardware installation guide
Power adapter
Power cable
