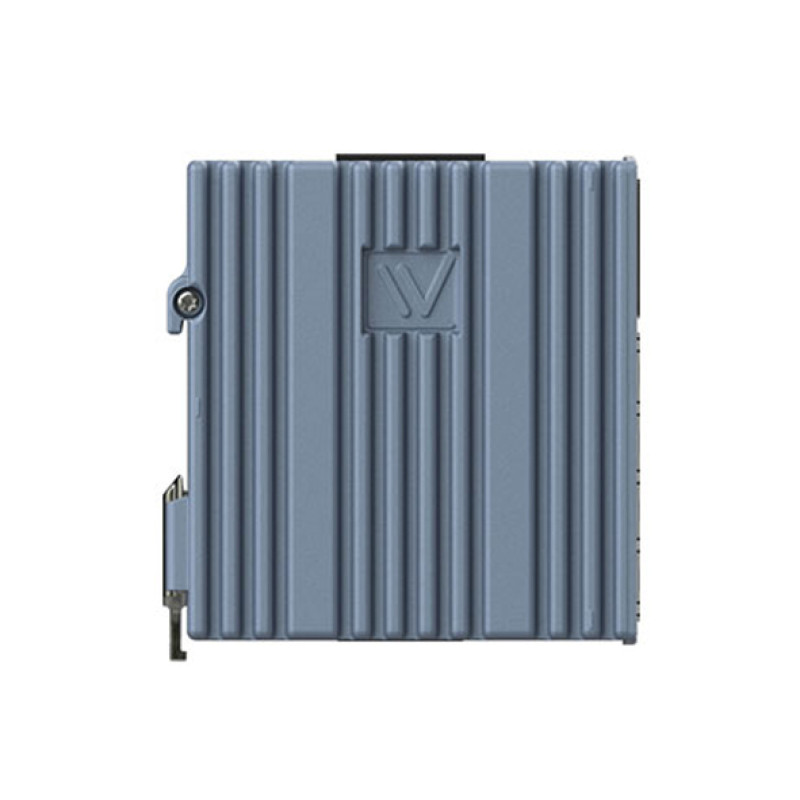

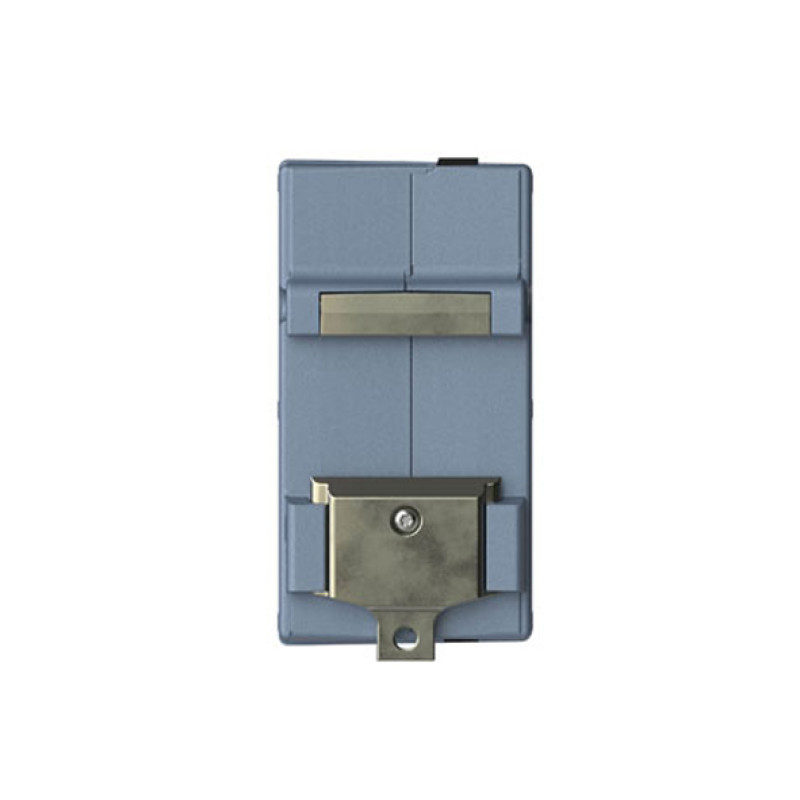

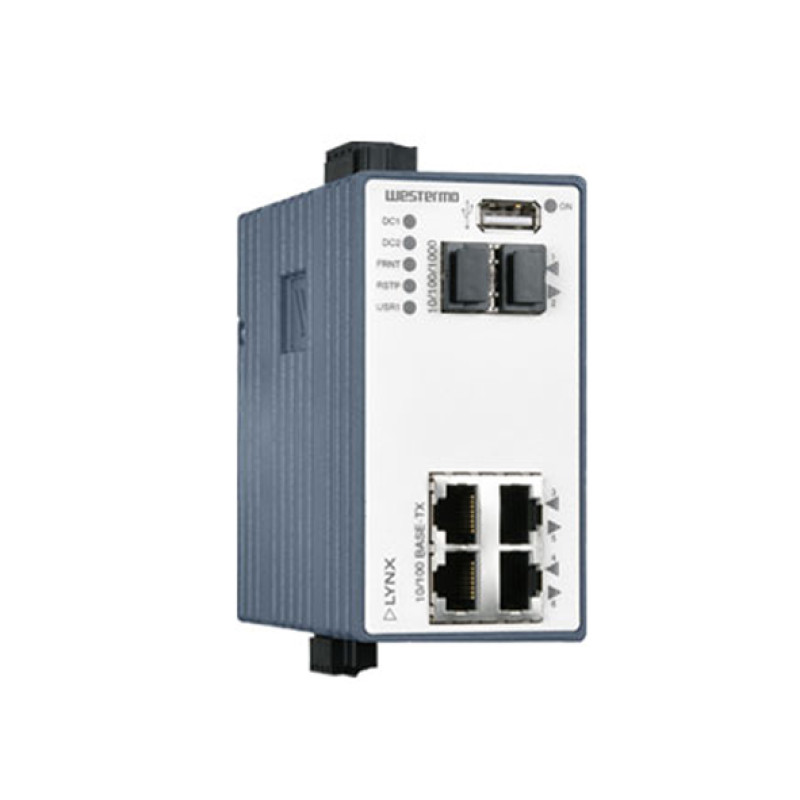

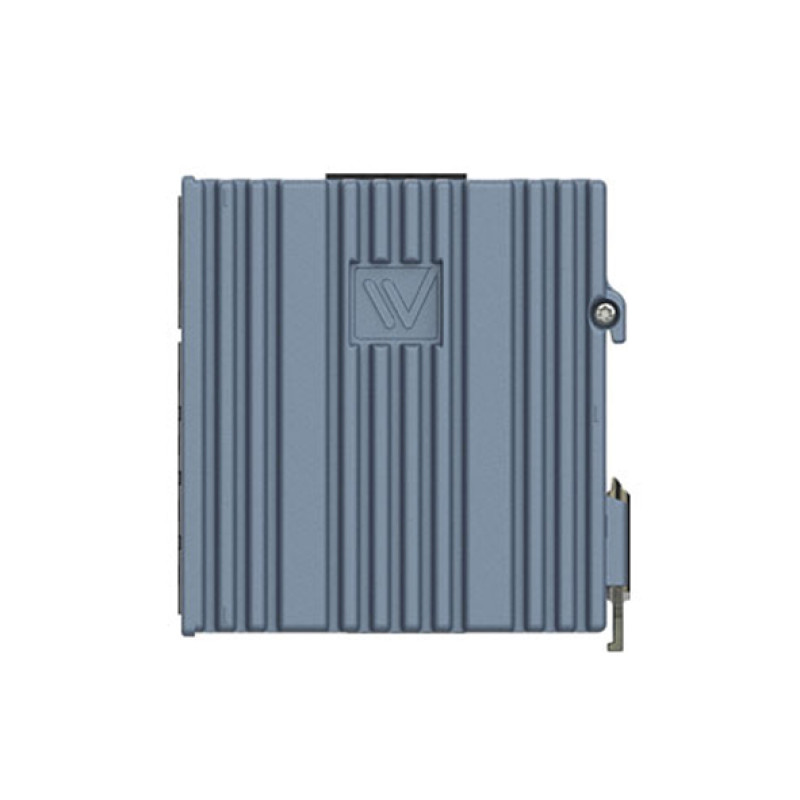

Westermo L106-F2G Managed Ethernet Switch
- Managed Ethernet Switch
- 4 x RJ-45, 10 Mbit/s, 100 Mbit/s
- 2 x 100/1000 Mbit/s SFP transceivers supported, Ethernet FX
(LC) or TX SFP (RJ-45)
- Brand: WESTERMO
- Product Code: L106-F2G
Description
The Lynx 106-F2G is a layer 2 industrial Ethernet switch, powered by the Westermo WeOS network operating system. Lynx is the most compact and has the lowest power requirements in this class of switch. Lynx 106-F2G has 4 10/100 Mbit/s ports in addition to 2 ports which can be fitted with Gbit or 100 Mbit SFP transceivers.
The Lynx is designed for simple use in industrial applications with its robust DIN rail clip to the configurable fault contact and the industrial-level dual power inputs. Only industrial-grade components are used which gives the Lynx an MTBF of 615,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case. Lynx has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.
WeOS has been developed by Westermo to allow us to offer cross-platform and future-proof solutions. WeOS can deliver 20 ms ring recovery performance even for networks with video or EtherNet/IP traffic. For more WeOS functionality please see the WeOS datasheet.
You can place an order for the Westermo L106-F2G Managed Ethernet Switch, which is applicable in the Factory Automation, Railway Transportation industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
Specification
Interface | |
---|---|
Number of ports | 6 Ports |
10/100Mb RJ45 (Megabit) Ports | : 4 Ports |
10/100/1000Mb RJ45 (Gigabit) Ports | : 2 ports with separate installation |
100Mb Fiber optic multi mode (Megabit) Ports | |
100Mb Fiber optic single mode (Megabit) Ports | |
1000Mb SFP Fiber optic (Gigabit) Ports | : 2 ports with separate installation |
10/100Mb (Megabit) POE Prots | |
100Mb SFP Fiber optic (Megabit) Ports | : 2 ports with separate installation |
10/100/1000Mb (Gigabit) POE Ports | |
Serial port | |
USB | : 1 USB 2.0 port |
Features and capabilities | |
Backup | STP/RSTP |
LED Indicators | |
LED Per Port | |
Power | |
Power Requirements | |
Maximum power consumption | 30W |
Power Consumption (Output Adapter) | 24V DC, 1.3A |
Power Input Plugin ( Redundant ) | |
General | |
Fan / Fanless | |
MTBF | 615,000 hour |
Switch specifications | |
Most forwarding speed | - |
Network working layers | Layer 2 |
Switch type | Managed |
Port Aggregation | IEEE 802.1AX/802.3ad |
Physical Characteristics | |
Dimensions | 52.5x100x101mm |
Housing | Metal |
Installation | Din-rail - Use in sea and rail areas |
Operating Temperature | -40 to 70 ° C |
Operation Humidity | 5% to %95 RH |
Standards and Certifications | UL/IEC/EN 60950-1, IEC 60068-2-6, IEC-60068-2-27, IEC 60068-2-27, EN 60950-1, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 55022 +A1, EN 55024 + A1 + A2, FCC part 15, EN 50121-4, IEC 62236-4, EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 61000-4-9, EN 61000-4-3, EN 61000-4-6, EN 55022, DNV 2.4, IP40 |
Storage Humidity | 5% to %95 RH |
Storage Temperature | -50 to 85 ° C |
Weight | 0.7Kg |
Standards and protocols | |
Protocols and work standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1X Port Access Control |
Protocols and management standards | IGMPv2/v3, HTTP and HTTPS or CLI (SSHv2 or Telnet), SNMPv1/v2c/v3, SNTP (NTP client), PPPoE client, DHCP client, DHCP server including option 82, DHCP relay agent including option 82, DDNS |
Package Checklist | |
Hardware installation guide | |
Power adapter | |
Power cable |
