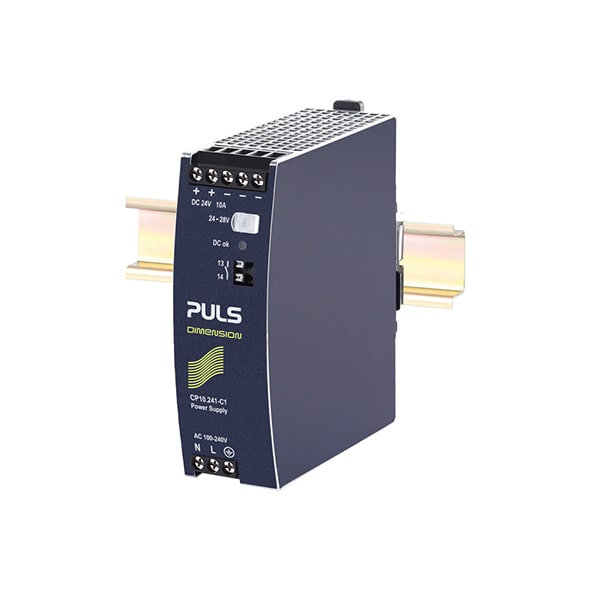

PULS CP10.241-C1 DIN-rail Power supply

  • AC 100-240V wide-range input
  • Width only 39mm
  • Efficiency up to 95.2%
  • Excellent partial load efficiency
  • 20% output power reserves
  • Safe HiccupPLUS overload mode
  • Easy fuse breaking due to high overload peak current
  • Active power factor correction (PFC)
  • Minimal inrush current surge
  • Full power between -25°C and +60°C
  • DC-OK relay contact

Description

The DIMENSION CP-Series units are high-end power supplies in a medium price range without compromising quality, reliability and performance. The CP-Series is part of the DIMENSION power supply family. The most outstanding features of CP10 series are the high efficiency, advanced inrush current limitation, active PFC and the wide operational temperature range.

The CP-Series includes all the essential basic functions. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C. Additionally, the CP10 can deliver three times the nominal output current for at least 12ms which helps to trip fuses on faulty output branches. High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK relay contact and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.


You can place an order for the PULS CP10.241-C1 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Specification

Input Data
AC-Input Voltage AC 100-240V (± 15%)
DC-Input Voltage DC 110V-150V (± 20%)
EN61000-3-2(PFC-Norm) fulfilled
Harmonic Correction active
Power Factor 0.97
Input Inrush Current Limitation active
Peak turn on current 6A/9A
External Input Fuse Recommendation min. B - 6A / C - 6A
Output Data
nominal Voltage 24Vdc
Adjustment Range 24-28V
Output Current Range 10-8.6A
Output Current 8.6A at 28V, 10A at 24V
Output Power 240W
Power Reserves 20% Power Boost
max. Ripple and Noise Voltage 50mVpp
Physical Characteristics
Mounting DIN-Rail
Dimension 39mm x 124mm x 117mm
Weight 600g
Operating Temperature -25°C ... +70°C
General
Derating 6W/° at >+60°C
Efficency, typ. 95.2%
Power Losses, typ. 12.1W
MTBF 667.000h
Connection method Screw terminals
DC-OK Signal
E Classification eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082
Package Checklist
Packaging Unit 1pc
