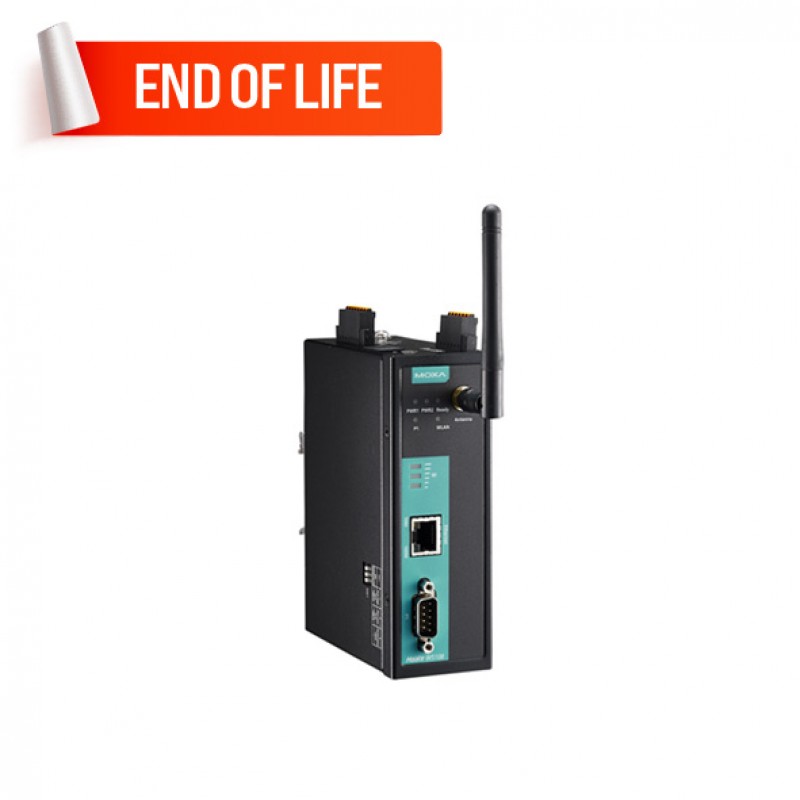

MOXA MGate W5108-T Industrial Ethernet Gateways

  • Retrieve Modbus/DNP3 serial data through an 802.11 network
  • Supports serial tunneling communications
  • Slave mode supports 16 TCP masters and up to 31 or 62 serial slaves at the same time
  • Embedded Modbus/DNP3 traffic monitor
  • Secure data access with WEP/WPA/WPA2
  • 2 kV serial port isolation
  • microSD card for configuration backup
  • -40 to 75°C wide operating temperature models available
  • Supports 2 digital inputs and 2 digital outputs
  • Security features based on IEC-62443

  • Brand: MOXA
  • Product Code: MGate W5108-T

Description

The MGate W5108/W5208 gateways are an ideal choice for connecting Modbus serial devices to a wireless LAN, or DNP3 serial to DNP3 IP through a wireless LAN. With IEEE 802.11a/b/g/n support, you can use fewer cables in difficult wiring environments, and for secure data transmission, the MGate W5108/W5208 gateways support WEP/WPA/WPA2. The gateways’ rugged design makes them suitable for industrial applications, including oil and gas, power, process automation, and factory automation.

The MGate W5108/W5208 gateways support Modbus Protocol Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as slave ID and register address, or incorrect hardware parameters such as baudrate and interface. With Modbus Protocol Traffic Monitor support, you can check the captured data and easily identify the root cause.

The MGate W5108/W5208 Series of gateways support a web console and Telnet console for remote maintenance. Each gateway also supports encryption commutation functions such as HTTPS and SSH to prevent security issues. In addition, log functions are provided in the firmware to record connection events and Modbus for maintenance events. Users can review log data remotely through the web console.


You can explore our wide range of products and enquire about the MOXA MGate W5108-T Industrial Ethernet Gateways for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Specification

Ethernet Interface
Number of Ports 1
Speed 10/100 Mbps, Auto MDI/MDIX
Connector 8-pin RJ45
Magnetic Isolation Protection 1.5 kV (built-in)
Protocols Modbus TCP, DNP3, TCP Client/Server modes supported
Serial port specifications
Protocols Protocols
RS-232 Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Number of Ports 1
RS-422 Signals Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Signals Tx+, Tx-, Rx+, Rx-, GND
Serial Standards RS-232/422/485, software selectable
Connectors DB9 male
RS-485-2w Signals Data+, Data-, GND
Pull High/Low Resistor for RS-485 1 kΩ, 150 kΩ
Terminator for RS-485 120 Ω
Isolation 2 kV (built-in)
Serial Communication Parameters
Data Bits 7, 8
Stop Bits 1, 2
Parity Even, Odd, Space, Mark, None
Flow Control RTS/CTS, XON/XOFF, RTS Toggle
Baudrate 50 bps to 921.6 kbps
Software
Configuration Options Web console, Telnet console
Utility Device Search Utility (DSU) for Windows 95, 98, ME, NT, 2000, Windows XP, Server 2003, Vista, Server 2008 (x86/x64), Windows Server 2008 R2, Windows 7/8/8.1 (x86/x64), Windows Server 2012 (x64), Windows 2012 R2
Network Protocols TCP/IP, UDP, HTTP, SMTP, NTP, DNS, DHCP Client, SNMP (v1, v2, v3), Private MIB, ARP, Telnet
Wireless Network
Standards Compliance 802.11a/b/g/n
Network Modes Infrastructure, Ad-Hoc
Transmission Rate 802.11a/g: 65, 54, 48, 36, 24, 18, 12, 9, 6 Mbps, auto rate, 802.11b: 11, 5.5, 2, 1 Mbps, auto rate, 802.11n 2.4 GHz: HT20, MCS 0-7, 802.11n 5 GHz: HT20 & HT40 MCS 0-7
Transmission Distance Up to 100 meters (in open areas)
Antenna Connector Reverse SMA
TX Transmit Power (per antenna port) 2.4 GHz, 802.11b: 1 to 11 Mbps, Typ. 16 (±1.5 dBm), 802.11g: 6 to 36 Mbps, Typ.16 (±1.5 dBm), 48 Mbps, Typ. 15 (±1.5 dBm), 54 Mbps, Typ. 14 (±1.5 dBm), 802.11n (20 MHz): MCS0-3: Typ. 16 dBm (± 1.5 dBm)
RX Sensitivity 2.4 GHz, 802.11b: -92 dBm @ 1 Mbps, -88 dBm @ 2 Mbps, -87 dBm @ 5.5 Mbps, -84 dBm @ 11 Mbps, 802.11g: -91 dBm @ 6 Mbps, -90 dBm @ 9 Mbps, -88 dBm @ 12 Mbps, -86 dBm @ 18 Mbps, -80 dBm @ 24 Mbps, -80 dBm @ 36
Spread Spectrum and Modulation (Typical) OFDM (54, 48, 36, 24, 18, 12, 9, 6 Mbps), OFDM (MCS0, MCS1, MCS2, MCS3 MCS4, MCS5, MCS6, MCS7), CCK (11 Mbps, 5.5 Mbps), DQPSK (2 Mbps), DBPSK (1 Mbps)
Operating Channels (Central frequency) US: 2.412 to 2.462 GHz (11 channels), 5.180 to 5.240 (4 channels), 5.260 to 5.320 (4 channels), 5.500 to 5.700 GHz (8 channels, excludes 5.600 to 5.640 GHz), 5.745 to 5.825 GHz (5 channels), EU: 2.41
Digital Input/Output
Number of DIOs 2 DIs and 2 DOs
Connectors 6-pin terminal blocks
Dry Contact Level Logic “0”: Short to GND, Logic “1”: Open
Wet Contact Level Logic “0”: +3 VDC max., Logic “1”: +10 to 30 V (COM to DI)
Digital Output (Sink Type) Driver Current: Max. 200 mA per channel, On-state voltage: 24 VDC nominal, open collector to 30 V
Storage Card Slot 1 microSD (SDHC) card slot supports up to 32 GB
General
MTBF 668,518 hrs
Power Requirements
Input Current 495 mA @ 9 VDC; 202 mA @ 24 VDC; 114 mA @ 48 VDC; 99 mA @ 60 VDC
Input Voltage 9 to 60 VDC
Power Connector Terminal block
Security
Authentication WEP encryption ( 64 or 128 bit), WPA / WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES)
Encryption 128-bit TKIP/AES-CCMP EAP-TLS, PEAP/GTC, PEAP/MD5, PEAP/MSCHAPV2, EAP-TTLS/PAP, EAP-TTLS/CHAP, EAP-TTLS/MSCHAP, EAP-TTLS/MSCHAPV2, EAP-TTLS/EAP-MSCHAPV2, EAP-TTLS/EAP-GTC, EAP-TTLS/EAP-MD5, LEAP
Physical Characteristics
Dimensions 45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
Housing Metal, IP30
Operating Temperature -40 to 75°C (-40 to 167°F)
Weight 589 g (1.30 lb)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Vibration IEC 60068-2-6, IEC 60068-2-64
Shock IEC 60068-2-27
Drop IEC 60068-2-32
Safety UL 508, EN 60950-1
Hazardous Location UL/cUL, Class 1 Division 2, ATEX Zone 2, IECEx
EMC EN 55032/24
EMI CISPR 32, FCC Part 15B Class B
EMS IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m, IEC 61000-4-8 PFMF
Radio EN 300328, EN 301893, TELECOM CE (ETSI EN 301 893, ETSI EN 300 328), ARIB RCR STD-33, ARIB STD-66
