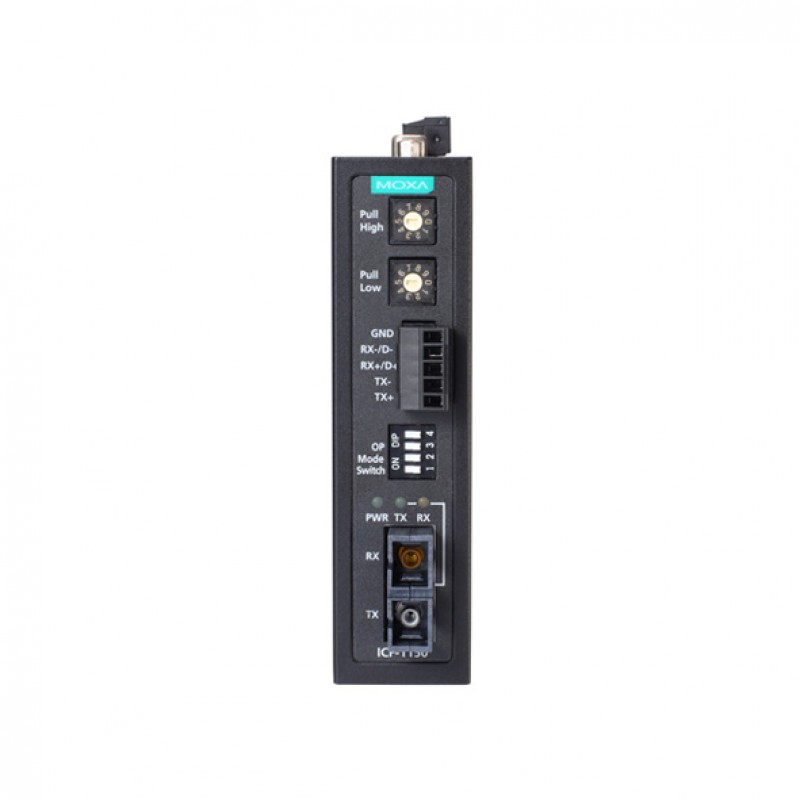

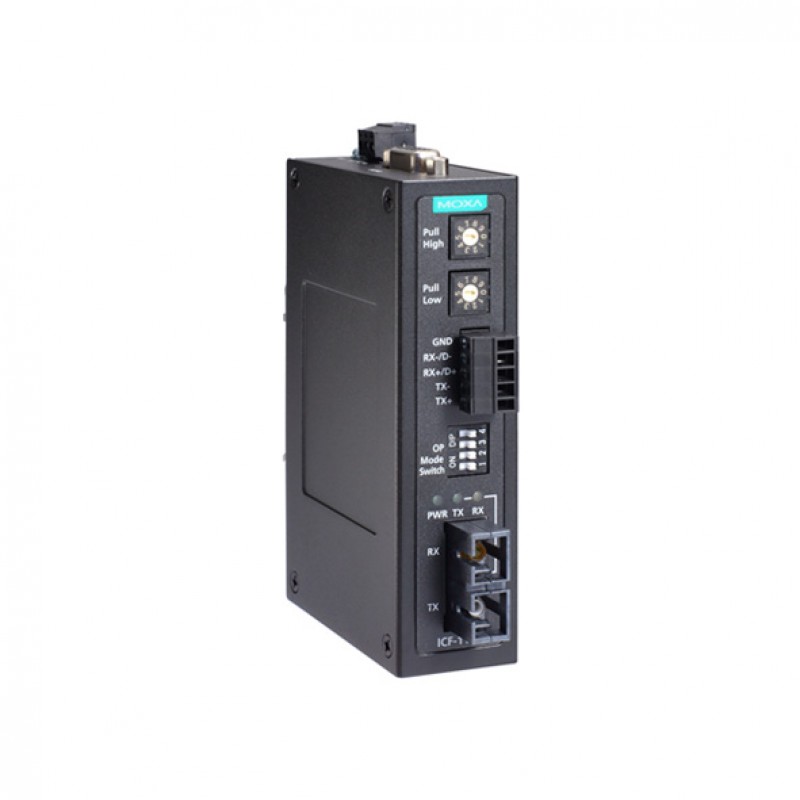

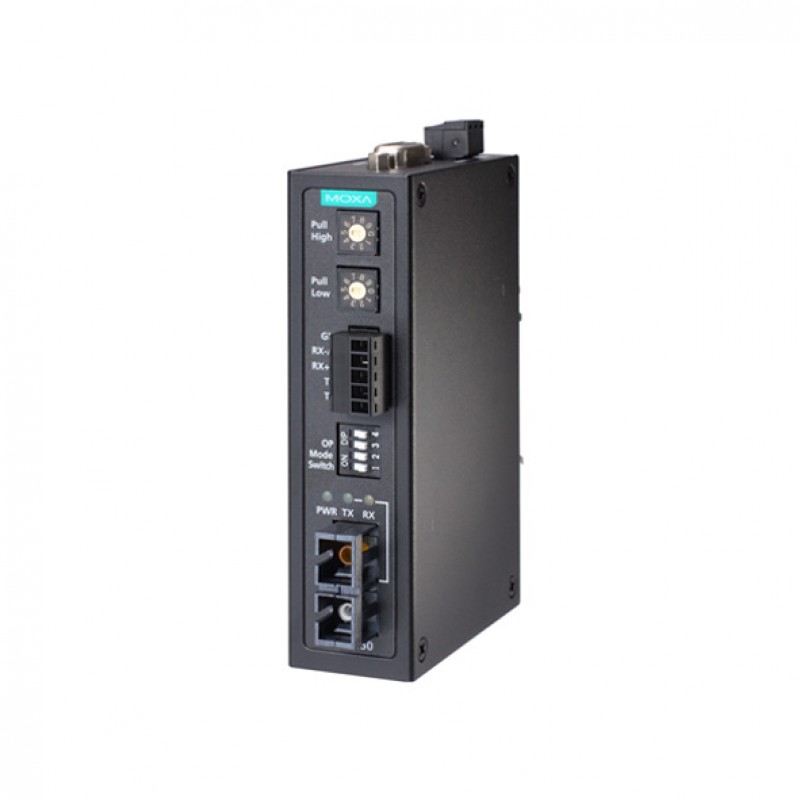

MOXA ICF-1150-S-ST-T Serial to Fiber Converter
- Serial to single-mode fiber optic converter
- 1 ST fiber optic port and 2 serial RS-232/422/485 serial ports
- Power Input 12V DC to 48V DC
- Support for ring topologies or point to point
- Suitable for work in a wide range of temperatures
- Brand: MOXA
- Product Code: ICF-1150-S-ST-T
Description
The ICF-1150 serial-to-fiber converters transfer RS-232/RS-422/RS-485 signals to optical fiber ports to enhance the transmission distance. When an ICF-1150 device receives data from any serial port, it sends the data through the optical fiber ports. These products not only support single-mode and multi-mode fiber for different transmission distances, but models with isolation protection are also available to enhance noise immunity. The ICF1150 products feature Three-Way Communication and a Rotary Switch for setting the pull high/low resistor for onsite installation.
You can also find the ICF-1150-S-SC, ICF-1150I-M-ST-T, and ICF-1150-M-SC-T models in the Industrial Media Converters.
Discover industrial automation
solutions appropriate to your needs, and easily
inquire about the MOXA ICF-1150-S-ST-T Serial to Fiber Converter through our user-friendly website via one of our Middle
East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Converter specifications | |
|---|---|
| Data transfer speed | 0.05Kbps to 921.6Kbps |
| Maximum data transmission distance | 921.6K |
| Minimum output power converter | -5dBm |
| Sensitivity to receiving information | -25dBm |
| Wavelength | 1310nm |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 12V DC, 0.127A to 48V DC |
| Power Input Plugin ( Redundant ) | |
| Standards and protocols | |
| Point-to-point topology | Half-duplex or full-duplex |
| Ring topology | Half-duplex |
| RS-232 Signals | TxD, RxD, GND |
| RS-422 Signals | TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| Interface | |
| 10/100Mb RJ45 (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 ST Port |
| 10/100/1000Mb (Gigabit) POE Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| Number of 10/100Mb PoE port | |
| USB | |
| DSL | |
| Serial port | : 2 RS-232/422/485 Ports |
| Other ports | |
| General | |
| Fan / Fanless | |
| MTBF | 792,085 hour |
| Require cable diameter | G.652 |
| Physical Characteristics | |
| Dimensions | 30.3x70x115mm |
| Housing | Metal |
| Installation | Din-rail |
| Isolation | |
| Operating Temperature | -40 to 85 ° C |
| Operation Humidity | - |
| Operation Humidity | 5% to %95 non-condensing |
| Protection against excessive consumption | : 1.1A |
| Protection against reverse flow | |
| Standards and Certifications | Safety: UL 508; Hazardous Location: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX, Zone 2 EEx nC IIC, IECEx; EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class B; EMS: EN 61000-4-2 (ESD): Contact: 8 kV; Air: 15 kV, EN 61000-4-3 (RS): 80 MHz to 1 GHz: 3 V/m, EN 61000-4-4 (EFT): Power: 4 kV; Signal: 2 kV, EN 61000-4-5 (Surge): Power: 4 kV; Signal: 0.5 kV, EN 61000-4-6 (CS): 150 kHz to 80 MHz: 3 V/m, EN 61000-4-8 (PFMF); Green Product: RoHS, CRoHS, WEEE; Freefall: IEC 60068-2-32; Water and Dust Proof: IP30 |
| Storage Temperature | -40 to 85 ° C |
| Weight | 0.33Kg |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
