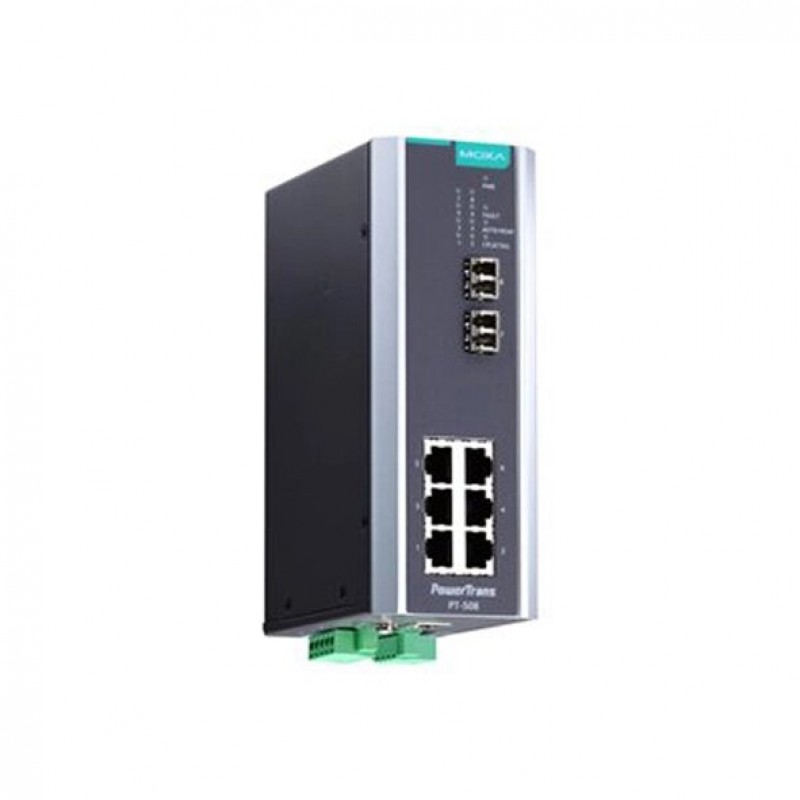

MOXA PT-508-SS-LC-48 Managed Ethernet Switches

  • 6 x 10/100Mbps T(X) ports and 2 x 100BaseFX Single-Mode Ports with LC Connector
  • DIN-rail
  • Aluminum body
  • 48 VDC input voltage
  • -40 to 85°C operating temperature
  • IEC 61850-3 and IEEE 1613 compliant
  • Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
  • Easy network management by the web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
  • Modbus TCP, LLDP, SNMP Inform, QoS, IGMP snooping, VLAN, IEEE 802.1X, HTTPS, SNMPv3, and SSH supported
  • Brand: MOXA
  • Product Code: PT-508-SS-LC-48

Description

The PowerTrans PT-508 Series is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). The PT-508’s optical fiber Fast Ethernet backbone, redundant ring, redundant power inputs (24 VDC or 48 VDC), and isolated power inputs (24 VDC, 48 VDC, or 110/220 VDC/VAC) increase the reliability of your communications and save on cabling/wiring costs. In addition, the DIN-rail and wall mounting design of the PT-508 switches simplify network planning and allows greater flexibility by letting you install up to 8 Fast Ethernet ports for power distribution applications.

You can also find the PT-508-SS-SC-24PT-508-SS-SC-48, and PT-508-MM-ST-24 models in the PT-508 series.


Inquire about the MOXA PT-508-SS-LC-48 Managed Ethernet Switches, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Specification

Interface
Number of ports 8 Ports
10/100Mb RJ45 (Megabit) Ports : 6 Ports
10/100/1000Mb RJ45 (Gigabit) Ports
100Mb Fiber optic multi mode (Megabit) Ports
100Mb Fiber optic single mode (Megabit) Ports : 2 LC Port
1000Mb SFP Fiber optic (Gigabit) Ports
10/100Mb (Megabit) POE Prots
100Mb SFP Fiber optic (Megabit) Ports
10/100/1000Mb (Gigabit) POE Ports
Features and capabilities
Backup ABC-02 automatic backup configurator
LED Indicators
LED Per Port
Power
Power Requirements
Maximum power consumption -
Power Consumption (Output Adapter) 0.12 A @ 48 VDC
Power Input Plugin ( Redundant ) -
General
Fan / Fanless Fanless
MTBF 394,238 hrs
Switch specifications
Most forwarding speed -
Network working layers Layer 2
Switch type Managed
Port Aggregation -
Physical Characteristics
Dimensions 60 x 160 x 110 mm (2.36 x 6.30 x 4.33 in)
Housing Aluminum
Installation DIN-rail mounting, DIN-rail mounting (with optional kit)
Operating Temperature -40 to 85°C (-40 to 185°F)
Operation Humidity 5 to 95% (non-condensing)
Standards and Certifications EMI, EMS, IEC 61850-3, IEEE 1613, Safety
Storage Humidity -
Storage Temperature -40 to 85°C (-40 to 185°F)
Weight 995 g (2.21 lb)
Standards and protocols
Protocols and work standards IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1w for Rapid Spanning Tree Protocol, IEEE 802.1X for authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for flow control
Protocols and management standards Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP
Package Checklist
Hardware installation guide
Power adapter
Power cable
