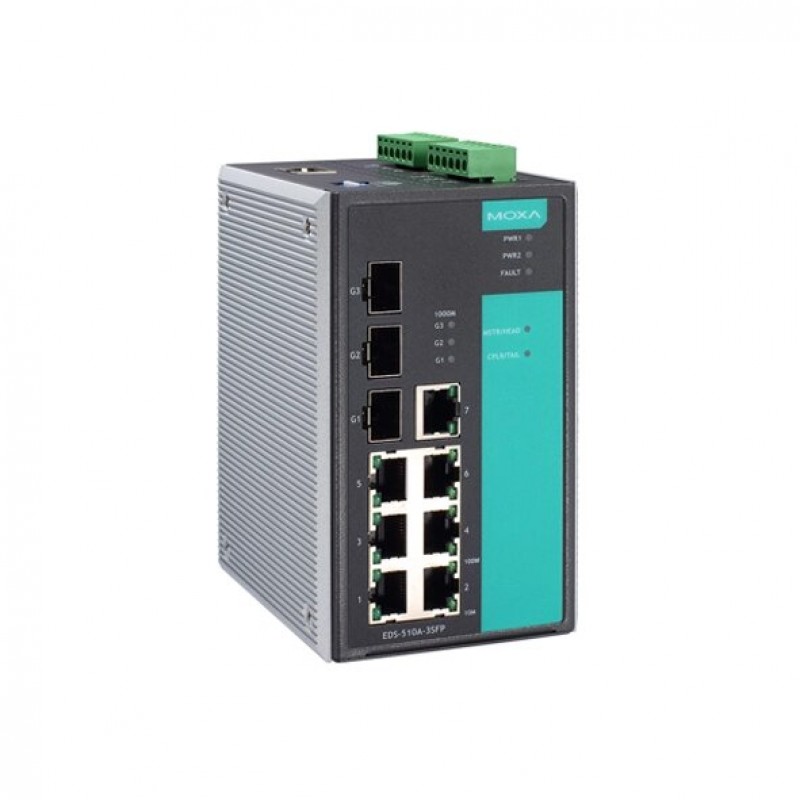

MOXA EDS-510A-3SFP Managed Ethernet Switches
- 7 100Mbps ports and 3 1000Mb SFP fiber optic ports
- Din-rail
- Metal body
- Brand: MOXA
- Product Code: EDS-510A-3SFP
.png)
Description
The EDS-510A Gigabit managed redundant Ethernet switches are equipped with up to 3 Gigabit Ethernet ports, making them ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The Ethernet redundancy technologies, Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP, can increase system reliability and the availability of your network backbone. The EDS-510A Series is designed especially for communication-demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.
You can also find the EDS-510A-1GT2SFP-T, EDS-510A-3GT-T, and EDS-510A-3SFP-T models in the DIN-Rail Ethernet Switches.
Inquire about the MOXA EDS-510A-3SFP Managed Ethernet Switches, designed
for industrial automation solutions. Feel free to get in touch with our sales team to give you
the best solutions at the best global price in the Middle East (UAE (Dubai),
KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 10 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 7 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | |
| 1000Mb SFP Fiber optic (Gigabit) Ports | : 3 Ports |
| 10/100Mb (Megabit) POE Prots | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Features and capabilities | |
| Backup | Turbo Ring, Turbo Chain, Automatic Backup Configurator (ABC-01), STP/RSTP, MSTP |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 24V DC, 0.46A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 204000 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 80.2x135x105mm |
| Housing | Metal |
| Installation | Din-rail |
| Operating Temperature | 0 to 60 ° C |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | FCC, UL 60950-1, UL 508, NEMA TS2, UL/cUL Class 1 Div. 2, ATEX Zone 2, DNV, GL, IP30 |
| Storage Humidity | - |
| Storage Temperature | -40 to 85 ° C |
| Weight | 1.17Kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3z for 1000BaseX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1s for Multiple Spanning Tree Protocol, IEEE 802.1Q for VLAN Tagging, IEEE 802.1p for Class of Service, IEEE 802.1X for Authentication, IEEE 802.3ad for Port Trunk with LACP |
| Protocols and management standards | IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, SNMP Inform, EtherNet/IP, Modbus/TCP, LLDP, IEEE 1588 PTPv2, IPv6, NTP Server/Client |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
