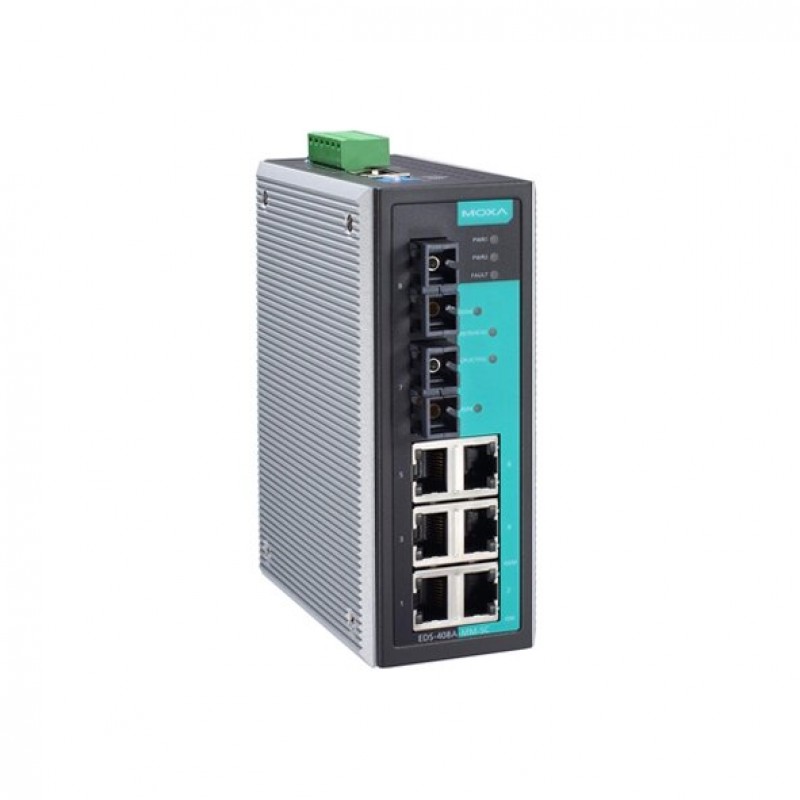

MOXA EDS-408A-SS-SC Managed Ethernet Switches
- 6 100Mbps ports and 2 100Mb single-mode fiber optic ports
- Din-rail
- Metal body
- Brand: MOXA
- Product Code: EDS-408A-SS-SC
.png)
Description
The EDS-408A Series is designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, IGMP snooping, IEEE 802.1Q VLAN, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-408A switches.
You can also find the EDS-408A-MM-ST-T, EDS-408A-PN, and EDS-408A-PN-T models in the DIN-Rail Ethernet Switches.
Enjoy the ease of online
inquiries for the MOXA EDS-408A-SS-SC Managed Ethernet Switches. You can submit your inquiry on our website and get the
most friendly communication with our experts to choose high-quality industrial
automation products at a reasonable price from our Middle East branches (UAE
(Dubai), KSA (Al Khobar, Riyadh), and Oman).
Specification
| Interface | |
|---|---|
| Number of ports | 8 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 6 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 2 SC Ports |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| Features and capabilities | |
| Backup | Turbo Ring, Turbo Chain, Automatic Backup Configurator (ABC-01), STP/RSTP |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 24V DC, 0.35A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 1102845 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 53.6x135x105mm |
| Housing | Metal |
| Installation | Din-rail |
| Operating Temperature | 0 to 60 ° C |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | CE/FCC, UL 508, UL/cUL Class 1 Div. 2, ATEX Zone 2, DNV/GL, NEMA TS2, IP30 |
| Storage Humidity | - |
| Storage Temperature | -40 to 85 ° C |
| Weight | 0.65Kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1w for Rapid STP, IEEE 802.1p for Class of Service, IEEE 802.1Q for VLAN Tagging |
| Protocols and management standards | IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
