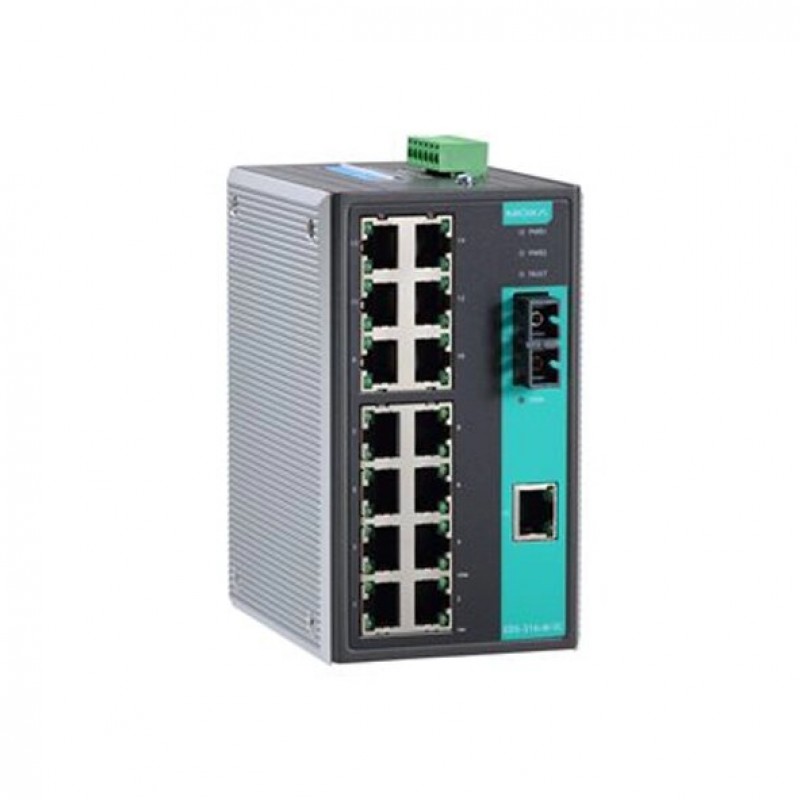

MOXA EDS-316-S-SC Unmanaged Ethernet Switches
- 15 100Mbps ports and 1 100Mb single-mode fiber optic port
- Din-rail
- Metal body
- Brand: MOXA
- Product Code: EDS-316-S-SC
.png)
Description
The EDS-316 Ethernet switches provide an economical solution
for your industrial Ethernet connections. These 16-port switches come with a
built-in relay warning function that alerts network engineers when power
failures or port breaks occur. In addition, the switches are designed for harsh
industrial environments, such as the hazardous locations defined by the Class 1
Div. 2 and ATEX Zone 2 standards.
The switches comply with FCC, UL, and CE standards and support either a standard operating temperature range of 0 to 60°C or a wide operating temperature range of -40 to 75°C. All switches in the series undergo a 100% burn-in test to ensure that they fulfill the special needs of industrial automation control applications. The EDS-316 switches can be installed easily on a DIN rail or in a distribution box.
You can also find the EDS-316-M-SC, EDS-316-MM-ST, and EDS-316-T models in the EDS-316 Series.
Easy World Automation offers the
easiest way to buy the MOXA EDS-316-S-SC Unmanaged Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial automation needs.
Specification
| Interface | |
|---|---|
| Number of ports | 16 Ports |
| 10/100Mb RJ45 (Megabit) Ports | : 15 Ports |
| 10/100/1000Mb RJ45 (Gigabit) Ports | |
| 100Mb Fiber optic multi mode (Megabit) Ports | |
| 100Mb Fiber optic single mode (Megabit) Ports | : 1 SC Port |
| 1000Mb SFP Fiber optic (Gigabit) Ports | |
| 10/100Mb (Megabit) POE Prots | |
| 100Mb SFP Fiber optic (Megabit) Ports | |
| 10/100/1000Mb (Gigabit) POE Ports | |
| LED Indicators | |
| LED Per Port | |
| Power | |
| Power Requirements | |
| Maximum power consumption | - |
| Power Consumption (Output Adapter) | 24V DC, 0.44A |
| Power Input Plugin ( Redundant ) | |
| General | |
| Fan / Fanless | |
| MTBF | 257000 hour |
| Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 1 |
| Switch type | UnManaged |
| Port Aggregation | - |
| Physical Characteristics | |
| Dimensions | 80.1x135x105mm |
| Housing | Metal |
| Installation | Din-rail |
| Operating Temperature | 0 to 60 ° C |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | CE, FCC, UL 508, UL 60950-1, UL/cUL Class 1 Div. 2, ATEX Zone 2, DNV/GL, IP30 |
| Storage Humidity | - |
| Storage Temperature | -40 to 85 ° C |
| Weight | 1.14Kg |
| Standards and protocols | |
| Protocols and work standards | IEEE 802.3 for 10BaseT, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control |
| Protocols and management standards | |
| Package Checklist | |
| Hardware installation guide | |
| Power adapter | |
| Power cable | |
