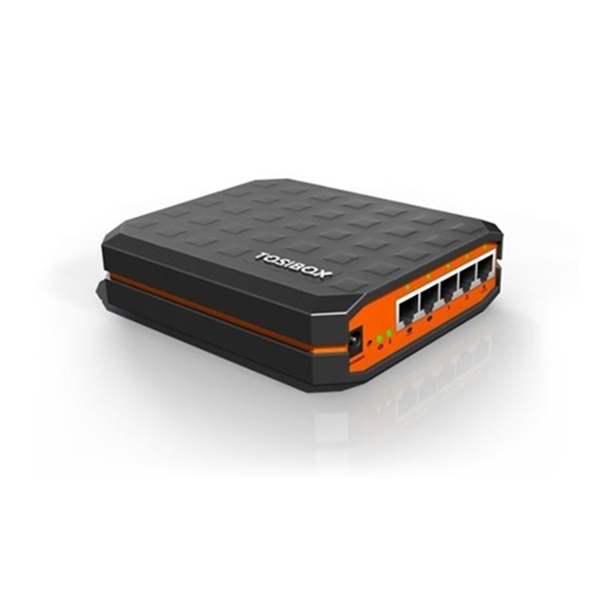

Beijer Tosibox Lock 200 - TBL2EU Remote access and networking device

  • Setup secure connection within minutes - built-in firewall
  • Data exchange directly between units - not Cloud-based
  • 2048 bit encryption - bank security

Description

TOSIBOX® Key is an intelligent cryptoprocessing device that enables a secure connection between your computer and one or more TOSIBOX® Locks, giving you full visibility and control over the network devices connected to the Lock. Connections are established through a secure, encrypted VPN tunnel over the Internet or other common WANs and LANs, and permissions can be easily granted, revoked, and configured in an unlimited number of ways. TOSIBOX® Key comes with a durable light metal alloy casing.


You can place an order for the Beijer Tosibox Lock 200 - TBL2EU Remote access and networking device online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Specification

General
Ports 1 x USB 2.0, type A, 1 x RJ-45 WAN connection; 10/100 Mb/s; auto-negotiation (MDI / MDI-X), 3 x RJ-45 LAN connection, 10/100 Mb/s; auto-negotiation (MDI / MDI-X), 1 x RJ-45 Service connection; 10/100 Mb/s; auto-negotiation (MDI / MDI-X)
Connections DC input power jack 5.5/2.1mm; 8 – 27 V DC ± 10%; reverse polarity protected, PoE input 8 – 27 V DC (WAN port); PoE output (LAN3 port; limited, 27 V / 580 mA max), The product must be powered by limited energy according to chapter 9.4 of IEC / UL 61010-1 3rd edition, DIN rail mounting bracket M3 threads on three sides, Maximum power consumption is 7W
WAN connection features Independent of operating systems, Works in all Internet connections (operator independent) under following two conditions: a) No forced proxy service in the Internet connection, and b) No passwords needed in accessing the Internet, Firewall friendly, Works with dynamic; static and private IP addresses; Built-in firewall; NAT ,Up to 50 concurrent VPN connections, VPN throughput up to 15 Mb/s
Mobile connection features Supported 3G/4G USB modems: see help.tosibox.comv, TosiOnline™ Automatic network recovery that recovers from most mobile operator and modem problems
WLAN -
Included accessories USB extension cable, Ethernet cable, AC adapter: Input 100 – 240 V AC; 50/60 Hz; Output 24.0 V DC; 0.8 A, DIN rail mounting bracket, Cable saddle, DC input plug
I/O specifications -
Physical characteristics
Dimensions 140 mm x 36 mm x 125 mm / 5.51" x 1.42" x 4.92" (L x W x H)
Operating Temperature -20 °C … +50 °C / -4 °F … +122 °F
Storage Temperature -40 °C … +70 °C / -40 °F … +158 °F
Weight 530 g / 1.17 lbs
